Product model：AF200X

Execution Standards：Q/IRMV1－2008

Product characteristics：

1、Rated voltage：600V

2、working temperature：-65～+200℃

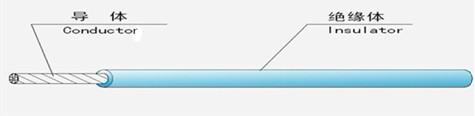

3、conductor：Solid core or twisted tin-plated copper wire

4、insulation：FEP Teflon

5、Colours: red/yellow/blue/white/black/green/brown, etc

Characteristics/uses：

It has excellent corrosion resistance, oil resistance, strong acid resistance, strong alkali resistance, strong oxidant, etc. It has excellent electrical insulation performance, high voltage resistance, low high frequency loss, no moisture absorption, high insulation resistance, excellent fire resistance, aging resistance and long service life.

In the electronic industry, it can be used for temperature compensation wire, low temperature wire, high temperature heating wire, aging resistant wire and flame retardant wire; in the household electrical appliances industry, it can be used for internal wiring of air conditioner, microwave oven, electronic disinfection cabinet, electric rice burger, electronic hot water bottle, electric heater, oven, electric frying pan, lamp decoration, etc.

Delivery requirement：

According to the agreement of the two parties, short delivery of not less than 10 meters is allowed. The quantity shall not exceed 10% of the total length of delivery.

Specification, structure and technical parameters：

nominal cross-section area （mm² ）	Conductor structure Number/Wire Diameter（mm）	Insulation thickness （mm）	outer diameter on the average （mm）	DC Resistance of Conductor at 20 Temperature 20 ℃ （Ω/km）	Packaging length （m）
0.014	7/0.05	0.15	0.45	1454	500
0.035	7/0.08	0.15	0.60	568	500
0.05	7/0.10	0.15	0.60	356	500
0.08	7/0.12	0.20	0.78	245	500
0.12	7/0.15	0.25	0.95	163	500
0.20	7/0.20	0.25	1.10	90.4	500
0.35	19/0.16	0.25	1.30	53.1	200
0.50	19/0.18	0.25	1.40	40.1	200
0.75	19/0.23	0.25	1.70	24.6	200
1.0	19/0.26	0.25	1.80	20.4	200
1.20	19/0.28	0.30	2.0	16.6	200
1.50	19/0.32	0.30	2.25	12.7	200
2.0	19/0.37	0.30	2.45	10.0	100
2.5	19/0.41	0.40	2.80	7.43	100
4.0	37/0.37	0.40	3.40	4.88	100
6.0	37/0.45	0.50	4.20	3.30	100
8.0	133/0.28	0.5	5.2	2.30	100
10	133/0.32	0.5	5.8	1.82	100
16	133/0.39	0.6	7.0	1.22	100
20	133/0.45	0.6	8.0	0.919	100
25	196/0.40	0.6	8.8	0.795	100
35	494/0.30	0.7	10.4	0.565	100
50	396/0.40	0.8	12.2	0.393	100
70	551/0.40	1.0	14.6	0.277	100
95	760/0.40	1.2	17.2	0.210	100
0.03	1/0.20	0.15	0.50	560	500
0.05	1/0.25	0.18	0.60	386.9	500
0.07	1/0.30	0.2	0.70	245	500
0.12	1/0.40	0.20	0.80	146.9	500
0.20	1/0.50	0.25	1.0	94	500
0.3	1/0.60	0.25	1.10	65.3	200
0.5	1/0.80	0.30	1.40	36.7	200
0.75	1/0.97	0.25	1.48	24.7	200
0.78	1/1.0	0.30	1.60	24.7	200
1	1/1.13	0.30	1.70	18.2	200
1.13	1/1.20	0.30	1.80	16.5	200
2.5	1/1.78	0.40	2.60	7.56	100
Note: According to the technical agreement between the two parties, products of other specifications can be produced.
