Model：AF250

Execution Standards：Q/IRMV1－2008

Product Characteristics：

1、Rated voltage：600V

2、working temperature：-80～+250℃；withstand 350℃ in a short time。

3、conductor：Solid core or twisted nickel or silver plated copper wire

4、insulation：PFA Teflon

5、Colours: red/yellow/blue/white/black/green/brown/orange/purple/green/etc

Characteristics/uses：

It has excellent corrosion resistance, oil resistance, strong acid resistance, strong alkali resistance, strong oxidant, etc. It has excellent electrical insulation performance, high voltage resistance, low high frequency loss, no moisture absorption, high insulation resistance, excellent fire resistance, aging resistance and long service life.

In the electronic industry, it can be used for temperature compensation wire, low temperature wire, high temperature heating wire, aging resistant wire and flame retardant wire; in the household electrical appliances industry, it can be used for internal wiring of air conditioner, microwave oven, electronic disinfection cabinet, electric rice burger, electronic hot water bottle, electric heater, oven, electric frying pan, lamp decoration, etc.

Delivery requirement：

According to the agreement of the two parties, short delivery of not less than 10 meters is allowed. The quantity shall not exceed 10% of the total length of delivery.

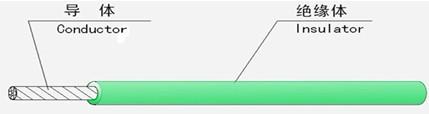

Specification, structure and technical parameters：

nominal cross-section area （mm²）	Conductor structure Number/Wire Diameter （mm）	Insulation thickness （mm）	External diameter of insulation （mm）	DC Resistance of Conductor at 20 Temperature 20 ℃ （Ω/km）	Packaging length （m）
0.035	7 × 0.08	0.20	0.60	525	500
0.05	7 × 0.10	0.20	0.70	330	500
0.08	7 × 0.12	0.22	0.80	227	500
0.12	7 × 0.15	0.25	0.95	150	500
0.14	7 × 0.16	0.17	0.82	126	500
0.20	7 × 0.20	0.30	1.20	83.5	500
0.35	19 × 0.16	0.30	1.40	49.5	500
0.50	19 × 0.18	0.30	1.60	36.0	200
0.75	19 × 0.23	0.35	1.85	22.7	200
1 × 0.97	0.26	1.49	22.7	200
1.0	19 × 0.26	0.35	2.00	19.0	200
1.2	19 × 0.28	0.35	2.10	15.3	200
1.5	19 × 0.32	0.40	2.40	11.7	200
2.0	19 × 0.37	0.40	2.65	9.45	200
2.5	19 × 0.41	0.50	3.10	6.86	100
4.0	37 × 0.37	0.50	3.60	4.51	100
6.0	37 × 0.45	0.50	4.20	3.05	100
8.0	133 × 0.28	0.5	5.20	2.16	100
10	133 × 0.32	0.50	5.80	1.68	100
16	133 × 0.39	0.60	7.00	1.13	100
20	133 × 0.45	0.60	8.0	0.886	100
25	196 × 0.40	0.6	8.8	0.734	100
35	494 × 0.30	0.7	10.4	0.511	100
50	396 × 0.40	0.8	12.2	0.358	100
70	551 × 0.40	1.0	14.6	0.270	100
95	760 × 0.40	1.2	17.2	0.210	100
Note: According to the technical agreement between the two parties, products of other specifications can be produced.
