Model：JGG
Executive standard：JB/T6213.4-2006
Product characteristics：
1、Rated voltage：3000V 、6000V、10000V
2、Working temperature：-60～+180℃

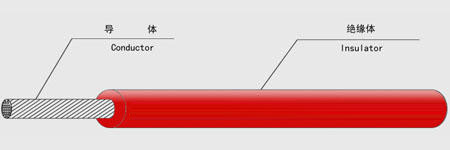

3、Conductor：Bare copper wire or tin-plated copper strand
4、Insulation：Silicon rubber
5、Color：Agreement between supplier and demander
Characteristics/uses：
It has excellent high temperature and low temperature resistance, excellent chemical stability, high voltage resistance, aging resistance and long service life. It is soft and easy to install.
It is widely used in lighting fixtures, household appliances, electric and thermal appliances, instrumentation, motor wiring and high temperature environment such as electronics, lamps and burners.
Delivery requirement：
According to the agreement of the two parties, short delivery of not less than 10 meters is allowed. The quantity shall not exceed 10% of the total length of delivery.
Specification, structure and technical parameters：
|
Conductor structure |
Insulation thickness（mm）
|
The wire diameter
（mm）
|
20 ℃ maximum conductor dc resistance
（Ω/km）
|
|
Nominal cross-section area （mm2）
|
Number/Wire Diameter
（mm）
|
Conductor diameter
（mm）
|
3000V
|
6000V
|
10000V
|
3000V
|
6000V
|
10000V
|
|
0.5
|
28/0.15
|
0.90
|
2.0
|
2.50
|
3.60
|
4.90
|
5.90
|
8.10
|
40.1
|
|
0.75
|
24/0.20
|
1.15
|
2.0
|
2.50
|
3.60
|
5.20
|
6.20
|
8.40
|
26.7
|
|
1
|
32/0.20
|
1.30
|
2.0
|
2.50
|
3.60
|
5.30
|
6.30
|
8.50
|
20
|
|
1.5
|
48/0.20
|
1.60
|
2.2
|
2.80
|
3.80
|
6.00
|
7.20
|
9.20
|
13.7
|
|
2
|
40/0.25
|
1.85
|
2.2
|
2.80
|
3.80
|
6.30
|
7.50
|
9.50
|
9.9
|
|
2.5
|
49/0.25
|
2.00
|
2.4
|
3.00
|
4.00
|
6.80
|
8.00
|
10.0
|
8.21
|
|
4
|
56/0.30
|
2.80
|
2.4
|
3.00
|
4.00
|
7.60
|
8.80
|
10.8
|
5.09
|
|
6
|
84/0.30
|
3.60
|
2.6
|
3.20
|
4.20
|
8.80
|
10.0
|
12.0
|
3.39
|
|
10
|
84/0.40
|
4.60
|
2.6
|
3.20
|
4.20
|
9.80
|
11.0
|
13.0
|
1.95
|
|
16
|
126/0.40
|
5.80
|
2.8
|
3.50
|
4.50
|
11.40
|
12.80
|
14.80
|
1.24
|
|
25
|
196/0.40
|
7.60
|
2.8
|
3.50
|
4.50
|
13.20
|
14.60
|
16.60
|
0.795
|
|
35
|
494/0.30
|
8.80
|
2.8
|
3.70
|
4.80
|
14.40
|
16.20
|
18.50
|
0.565
|
|
50
|
396/0.40
|
10.60
|
3.0
|
3.70
|
4.80
|
16.60
|
18.00
|
20.20
|
0.393
|
|
70
|
551/0.40
|
12.80
|
3.0
|
3.90
|
5.00
|
18.80
|
20.60
|
22.80
|
0.277
|
|
95
|
760/0.40
|
14.80
|
3.2
|
3.90
|
5.00
|
21.20
|
22.60
|
24.80
|
0.210
|
|
120
|
608/0.50
|
16.5
|
3.2
|
4.20
|
5.50
|
23.00
|
25.00
|
27.50
|
0.164
|
|
150
|
760/0.50
|
18.2
|
3.5
|
4.50
|
5.50
|
25.20
|
27.20
|
29.20
|
0.132
|
|
185
|
925/0.50
|
20.0
|
3.5
|
4.80
|
5.70
|
27.00
|
29.60
|
31.50
|
0.108
|
|
240
|
1221/0.50
|
23.0
|
3.5
|
5.20
|
6.00
|
30.00
|
33.40
|
35.00
|
0.0817
|
