High Voltage Wire
AGG-DC Silicone Rubber DC High Voltage Wire
Model：AGG
Executive standard：Q/IRMV2-2008
Product characteristics：
1、Rated voltage： 5KV、10KV、15KV、20KV、25KV、30KV、50KV、100KV
2、Working temperature：-60～+200℃
3、Conductor：Twisted tin-plated copper wire
4、Insulation：Silicon rubber
5、Colours: red/yellow/blue/white/black/green/brown, etc
Characteristics/uses：
It has excellent high temperature and low temperature resistance, excellent chemical stability, high voltage resistance, aging resistance and long service life. It is soft and easy to install.
This product is suitable for gas ignition, automobile ignition, TV, microwave oven, internal high voltage of instruments, electronic appliances and other devices.
Delivery requirement：
According to the agreement of the two parties, short delivery of not less than 10 meters is allowed. The quantity shall not exceed 10% of the total length of delivery.

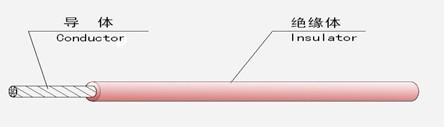

Specification, structure and technical parameters：
|
Voltage grade KV |
Nominal cross-section area |
Conductor structure |
Insulation thickness |
outer diameter on the average |
Conductor resistance when 20 ℃ maximum |
|
Number/Wire Diameter |
|||||
|
5 |
0.20 |
7/0.20 |
1.00 |
2.60 |
95.0 |
|
0.35 |
19/0.16 |
1.00 |
2.80 |
53.1 |
|
|
0.50 |
16/0.20 |
1.00 |
3.00 |
10.1 |
|
|
0.75 |
24/0.20 |
1.20 |
3.60 |
26.7 |
|
|
1.00 |
32/0.20 |
1.30 |
4.00 |
20.0 |
|
|
1.50 |
30/0.25 |
1.50 |
4.60 |
13.7 |
|
|
2.50 |
49/0.25 |
1.60 |
5.40 |
8.21 |
|
|
10 |
0.20 |
7/0.20 |
1.30 |
3.20 |
95.0 |
|
0.35 |
19/0.16 |
1.30 |
3.40 |
53.1 |
|
|
0.50 |
16/0.20 |
1.30 |
3.60 |
10.1 |
|
|
0.75 |
24/0.20 |
1.50 |
4.20 |
26.7 |
|
|
1.00 |
32/0.20 |
1.50 |
4.40 |
20.0 |
|
|
1.50 |
30/0.25 |
1.80 |
5.20 |
13.7 |
|
|
2.50 |
49/0.25 |
1.80 |
5.80 |
8.21 |
|
|
4.00 |
56/0.30 |
2.00 |
6.80 |
5.09 |
|
|
6.00 |
84/0.30 |
2.00 |
7.60 |
3.39 |
|
Voltage grade |
Nominal cross-section area |
Conductor structure |
Insulation thickness |
outer diameter on the average |
Conductor resistance when 20 ℃ maximum |
|
Number/Wire |
|||||
|
15 |
0.20 |
7/0.20 |
1.70 |
4.00 |
95.0 |
|
0.35 |
19/0.16 |
1.70 |
4.20 |
53.1 |
|
|
0.50 |
16/0.20 |
1.70 |
4.40 |
40.1 |
|
|
0.75 |
24/0.20 |
2.00 |
5.20 |
26.7 |
|
|
1.00 |
32/0.20 |
2.00 |
5.30 |
20.0 |
|
|
1.50 |
30/0.25 |
2.20 |
6.00 |
13.7 |
|
|
2.50 |
49/0.25 |
2.20 |
6.60 |
8.21 |
|
|
4.00 |
56/0.30 |
2.40 |
7.60 |
5.09 |
|
|
6.00 |
84/0.30 |
2.40 |
8.40 |
3.39 |
|
|
20 |
0.20 |
7/0.20 |
1.80 |
4.20 |
95.0 |
|
0.35 |
19/0.16 |
1.80 |
4.40 |
53.1 |
|
|
0.50 |
16/0.20 |
1.80 |
4.60 |
40.1 |
|
|
0.75 |
24/0.20 |
2.20 |
5.60 |
26.7 |
|
|
1.00 |
32/0.20 |
2.20 |
5.80 |
20.0 |
|
|
1.50 |
30/0.25 |
2.40 |
6.40 |
13.7 |
|
|
2.50 |
49/0.25 |
2.40 |
7.00 |
8.21 |
|
|
4.00 |
56/0.30 |
2.60 |
8.00 |
5.09 |
|
|
6.00 |
84/0.30 |
2.60 |
8.80 |
3.39 |
|
|
25 |
0.20 |
7/0.20 |
2.50 |
5.60 |
95.0 |
|
0.35 |
19/0.16 |
2.50 |
5.80 |
53.1 |
|
|
0.50 |
16/0.20 |
2.50 |
6.00 |
40.1 |
|
|
0.75 |
24/0.20 |
2.70 |
6.60 |
26.7 |
|
|
1.00 |
32/0.20 |
2.70 |
6.80 |
20.0 |
|
|
1.50 |
30/0.25 |
2.90 |
7.50 |
13.7 |
|
|
2.50 |
49/0.25 |
2.90 |
8.00 |
8.21 |
|
|
4.00 |
56/0.30 |
3.10 |
9.00 |
5.09 |
|
|
6.00 |
84/0.30 |
3.10 |
9.80 |
3.39 |
|
|
30 |
0.20 |
7/0.20 |
3.00 |
6.60 |
95.0 |
|
0.35 |
19/0.16 |
3.00 |
6.80 |
53.1 |
|
|
0.50 |
16/0.20 |
3.00 |
7.00 |
40.1 |
|
|
0.75 |
24/0.20 |
3.40 |
8.00 |
26.7 |
|
|
1.00 |
32/0.20 |
3.40 |
8.20 |
20.0 |
|
|
1.50 |
30/0.25 |
3.60 |
9.00 |
13.7 |
|
|
2.50 |
49/0.25 |
3.60 |
9.40 |
8.21 |
|
|
4.00 |
56/0.30 |
3.80 |
10.5 |
5.09 |
|
|
6.00 |
84/0.30 |
3.80 |
11.2 |
3.39 |
|
|
50 |
0.20 |
7/0.20 |
7.00 |
14.6 |
95.0 |
|
0.35 |
19/0.16 |
7.00 |
14.8 |
53.1 |
|
|
0.50 |
16/0.20 |
7.00 |
15.0 |
40.1 |
|
|
0.75 |
24/0.20 |
7.20 |
15.6 |
26.7 |
|
|
1.00 |
32/0.20 |
7.20 |
15.8 |
20.0 |
|
|
1.50 |
30/0.25 |
7.50 |
16.6 |
13.7 |
|
|
2.50 |
49/0.25 |
7.50 |
17.2 |
8.21 |
|
|
4.00 |
56/0.30 |
8.00 |
19.0 |
5.09 |
|
|
6.00 |
84/0.30 |
8.00 |
20.0 |
3.39 |
|
|
100 |
1.00 |
32/0.30 |
12.0 |
25.0 |
20.0 |
|
1.50 |
30/0.25 |
13.0 |
27.8 |
13.7 |
|
|
2.50 |
49/0.25 |
13.0 |
28.5 |
8.21 |
|
|
Note: According to the technical agreement between the two parties, products of other specifications can be produced. |
|||||
