High Voltage Wire
UL1911 Teflon High Voltage Wire
Model：AWM1911
Executive standard：UL758-2000
Product characteristics：
1、Rated voltage：5KV、10KV、15KV、20KV、25KV、30KV、35KV、40KV、50KV
2、Working temperature：-60～+250℃
3、Conductor：Twisted silver or nickel-plated copper wire
4、Insulation：PFA Teflon
5、Colours: red/yellow/blue/white/black/green/brown, etc
Usage：
This product is suitable for gas ignition, automobile ignition, TV, microwave oven, internal high voltage of instruments, electronic appliances and other devices.
Delivery requirement：
According to the agreement of the two parties, short delivery of not less than 10 meters is allowed. The quantity shall not exceed 10% of the total length of delivery.

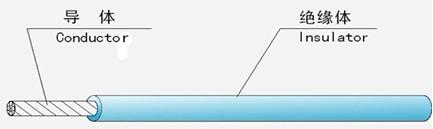

Specification, structure and technical parameters：
UL1911 Technical parameters of high temperature and high voltage wire（1）
| conductor | Insulation |
DC Resistance of Conductor at 20 Temperature 20 ℃ （Ω/km） |
Packaging length （m） |
||||||||||||
| Wire number |
Cond uctor struc ture |
Cross-sectional area |
5KV | 10kv | 15KV | 20KV | 25KV | ||||||||
|
thic kness |
Outer diameter |
thic kness |
Outer diameter |
thic kness |
Outer diameter |
thic kness |
Outer diameter |
thic kness |
Outer diameter |
Plate with nickel |
Plate with silver |
||||
| 24 | 7/0.20 | 0.22 | 0.50 | 1.60 | 0.60 | 1.80 | 0.65 | 1.90 | 0.70 | 2.00 | 0.75 | 2.10 | 97.8 | 89.2 | 305 |
| 22 | 19/0.15 | 0.33 | 0.50 | 1.75 | 0.60 | 1.95 | 0.65 | 2.05 | 0.70 | 2.15 | 0.75 | 2.25 | 67.2 | 56.4 | 305 |
| 20 | 19/0.18 | 0.50 | 0.50 | 1.90 | 0.60 | 2.10 | 0.65 | 2.20 | 0.70 | 2.30 | 0.75 | 2.40 | 40.1 | 35.3 | 305 |
| 18 | 19/0.23 | 0.80 | 0.50 | 2.15 | 0.60 | 2.35 | 0.65 | 2.45 | 0.70 | 2.55 | 0.75 | 2.65 | 24.7 | 22.2 | 305 |
| 17 | 19/0.26 | 1.0 | 0.50 | 2.30 | 0.60 | 2.50 | 0.65 | 2.60 | 0.70 | 2.70 | 0.75 | 2.80 | 20.0 | 17.6 | 305 |
| 16 | 19/0.30 | 1.31 | 0.50 | 2.50 | 0.60 | 2.60 | 0.65 | 2.80 | 0.70 | 2.90 | 0.75 | 3.00 | 16.2 | 14.0 | 305 |
| 14 | 19/0.37 | 2.08 | 0.50 | 2.85 | 0.60 | 3.05 | 0.65 | 3.15 | 0.70 | 3.25 | 0.75 | 3.35 | 9.50 | 8.78 | 305 |
| 12 | 19/0.48 | 3.31 | 0.50 | 3.40 | 0.60 | 3.60 | 0.65 | 3.70 | 0.70 | 3.80 | 0.75 | 3.90 | 6.08 |
5.53
|
305 |
| 10 | 37/0.43 | 5.30 | 0.50 | 4.05 | 0.60 | 4.25 | 0.65 | 4.30 | 0.70 | 4.40 | 0.75 | 4.50 | 3.73 | 3.47 | 305 |
UL1911 Technical parameters of high temperature and high voltage wire（2）
| conductor |
Insulation |
DC |
Packaging length |
||||||||||
|
Wire number |
Number/ |
Nominal cross-section area |
30kv |
35kv |
40KV |
50KV |
|||||||
|
thick |
Outer diameter |
thick |
Outer diameter |
thick |
Outer diameter |
thick |
Outer diameter |
Plate |
Plate |
||||
|
24 |
7/0.20 |
0.22 |
0.85 |
2.30 |
0.90 |
2.40 |
1.0 |
2.60 |
1.15 |
2.90 |
97.8 |
89.2 |
305 |
|
22 |
19/0.15 |
0.33 |
0.85 |
2.45 |
0.90 |
2.55 |
1.0 |
2.75 |
1.15 |
3.05 |
67.2 |
56.4 |
305 |
|
20 |
19/0.18 |
0.50 |
0.85 |
2.60 |
0.90 |
2.70 |
1.0 |
2.90 |
1.15 |
3.20 |
40.1 |
35.3 |
305 |
|
18 |
19/0.23 |
0.80 |
0.85 |
2.85 |
0.90 |
2.95 |
1.0 |
3.15 |
1.15 |
3.45 |
24.7 |
22.2 |
305 |
|
17 |
19/0.26 |
1.0 |
0.85 |
3.00 |
0.90 |
3.10 |
1.0 |
3.30 |
1.15 |
3.60 |
20.0 |
17.6 |
305 |
|
16 |
19/0.30 |
1.31 |
0.85 |
3.20 |
0.90 |
3.30 |
1.0 |
3.50 |
1.15 |
3.80 |
16.2 |
14.0 |
305 |
|
14 |
19/0.37 |
2.08 |
0.85 |
3.55 |
0.90 |
3.65 |
1.0 |
3.85 |
1.15 |
4.15 |
9.50 |
8.78 |
305 |
|
12 |
19/0.48 |
3.31 |
0.85 |
4.10 |
0.90 |
4.20 |
1.0 |
4.40 |
1.15 |
4.70 |
6.08 |
5.53 |
305 |
|
10 |
37/0.43 |
5.30 |
0.85 |
4.75 |
0.90 |
4.85 |
1.0 |
5.05 |
1.15 |
5.35 |
3.73 |
3.47 |
305 |
