Application and Description：
Single-core polyperfluoroethylene propylene (FEP)/polyimide/polyperfluoroethylene propylene (FEP) tape-insulated M81381/7 wires are used in aerospace. These wires are very suitable for applications related to black smoke emission and overload stability.

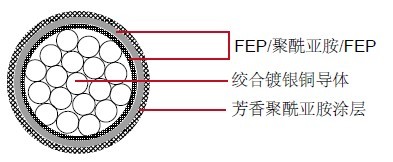

Structure：
Conductor：Twisted silver-plated copper conductor
Insulation：Fluorinated ethylene-propylene (FEP)/polyimide/ Fluorinated ethylene-propylene(FEP) insulated
Insulation wall thickness：0.0065"
Sheath：Aromatic polyimide coating
Characteristics：
Rated temperature：-55°C + 200°C
Rated voltage：600 volts
Color Code：MIL-STD-104
10 Basic Colors(Black, brown, red, orange, yellow, green, blue, purple, grey, white)
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter（Max） |
Conductor diameter（Min） |
Wire diameter(Max) |
Wire diameter(Min) |
Maximum resistance @
20°C OHMS/
MFT |
Weight LBS/MFT |
|
|
|
IN |
MM |
IN |
MM |
IN |
MM |
IN |
MM |
|
|
|
26 |
19/38 |
0.019 |
0.480 |
0.018 |
0.460 |
0.034 |
0.864 |
0.031 |
0.787 |
38.40 |
1.2 |
|
24 |
19/36 |
0.024 |
0.610 |
0.023 |
0.580 |
0.037 |
0.940 |
0.034 |
0.864 |
24.30 |
1.8 |
|
22 |
19/34 |
0.030 |
0.760 |
0.029 |
0.740 |
0.044 |
1.118 |
0.041 |
1.041 |
15.10 |
2.7 |
|
20 |
19/32 |
0.038 |
0.970 |
0.037 |
0.940 |
0.052 |
1.321 |
0.049 |
1.245 |
9.19 |
4.2 |
|
18 |
19/30 |
0.048 |
1.220 |
0.046 |
1.170 |
0.062 |
1.575 |
0.059 |
1.499 |
5.79 |
6.3 |
|
16 |
19/29 |
0.054 |
1.370 |
0.052 |
1.320 |
0.068 |
1.727 |
0.065 |
1.651 |
4.52 |
8.0 |
|
14 |
19/27 |
0.068 |
1.730 |
0.065 |
1.650 |
0.082 |
2.083 |
0.078 |
1.981 |
2.88 |
12.5 |
|
12 |
37/28 |
0.087 |
2.210 |
0.084 |
2.130 |
0.101 |
2.565 |
0.097 |
2.464 |
1.90 |
19.1 |
|
10 |
37/26 |
0.110 |
2.790 |
0.106 |
2.690 |
0.124 |
3.150 |
0.120 |
3.048 |
1.19 |
29.4 |
