Application and Description：
Single-core polyperfluoroethylene propylene (FEP)/polyimide/polyperfluoroethylene propylene (FEP) tape-insulated M81381/8 wires are used in aerospace. These wires are very suitable for applications related to black smoke emission and overload stability.

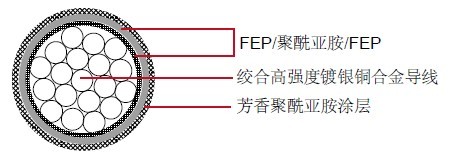

Structure：
Conductor：Twisted high strength silver-plated copper alloy
Insulation：Fluorinated ethylene-propylene (FEP)(FEP)/polyimide/ Fluorinated ethylene-propylene (FEP)insulated
Insulation wall thickness：0.0065"
Sheath：Aromatic polyimide coating
Characteristic：
Rated temperature：-55°C + 200°C
Rated voltage：600 volts
Color Code：MIL-STD-104
10 Basic Colors(Black, brown, red, orange, yellow, green, blue, purple, grey, white)
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter（Max） |
Conductor diameter（Min） |
Wire diameter（Max） |
Wire diameter（Min） |
Maximum resistance@
20°C OHMS/
MFT |
Weight LBS/MFT |
|
|
|
IN |
MM |
IN |
MM |
IN |
MM |
IN |
MM |
|
|
|
30 |
7/38 |
0.012 |
0.300 |
0.011 |
0.280 |
0.260 |
6.604 |
0.230 |
5.842 |
117.40 |
0.6 |
|
28 |
7/36 |
0.015 |
0.380 |
0.014 |
0.360 |
0.290 |
7.366 |
0.260 |
6.604 |
74.40 |
0.9 |
|
26 |
19/38 |
0.020 |
0.510 |
0.018 |
0.460 |
0.034 |
0.864 |
0.031 |
0.787 |
44.80 |
1.2 |
|
24 |
19/36 |
0.024 |
0.610 |
0.023 |
0.580 |
0.037 |
0.940 |
0.034 |
0.864 |
28.40 |
1.8 |
|
22 |
19/34 |
0.031 |
0.790 |
0.029 |
0.740 |
0.044 |
1.118 |
0.041 |
1.041 |
17.50 |
2.7 |
|
20 |
19/32 |
0.039 |
0.990 |
0.037 |
0.940 |
0.052 |
1.321 |
0.049 |
1.245 |
10.70 |
4.2 |
