Application and Description：
Single-core polyperfluoroethylene propylene (FEP)/polyimide/polyperfluoroethylene propylene (FEP) tape-insulated M81381/11 wires are used in aerospace. These wires are very suitable for applications related to black smoke emission and overload stability.

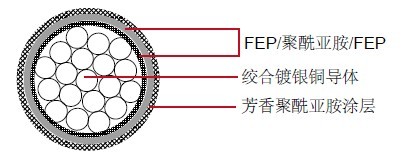

Structure：
Conductor：Twisted silver-plated copper conductor
Insulation：Fluorinated ethylene-propylene (FEP)/polyimide/ Fluorinated ethylene-propylene (FEP)insulated
Insulation wall thickness：0.0065" (Less than or equal to 10 AWG ) ,Or polyamide knitting(More than or equal to 8 AWG) (0.0084" or 0.0170" )
Sheath：Aromatic polyimide coating
Characteristics：
Rated temperature： -55°C + 200°C
Rated voltage: 600 volts
Color Code：MIL-STD-104
10 Basic Colors(Black, brown, red, orange, yellow, green, blue, purple, grey, white)
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter(Max) |
Conductor diameter(Min) |
Wire diameter(Max) |
Wire diameter(Min) |
Maximum resistance @
20°C OHMS/
MFT |
Weight LBS/MFT |
|
|
|
IN |
MM |
IN |
MM |
IN |
MM |
IN |
MM |
|
|
|
24 |
19/36 |
0.024 |
0.610 |
0.023 |
0.580 |
0.044 |
1.118 |
0.040 |
1.016 |
24.30 |
1.9 |
|
22 |
19/34 |
0.030 |
0.760 |
0.029 |
0.740 |
0.049 |
1.245 |
0.045 |
1.143 |
15.10 |
2.8 |
|
20 |
19/32 |
0.038 |
0.970 |
0.037 |
0.940 |
0.057 |
1.448 |
0.053 |
1.346 |
9.19 |
4.2 |
|
18 |
19/30 |
0.048 |
1.220 |
0.046 |
1.170 |
0.067 |
1.702 |
0.063 |
1.600 |
5.79 |
6.5 |
|
16 |
19/29 |
0.054 |
1.370 |
0.052 |
1.320 |
0.073 |
1.854 |
0.068 |
1.727 |
4.52 |
8.1 |
|
14 |
19/27 |
0.068 |
1.730 |
0.065 |
1.650 |
0.086 |
2.184 |
0.081 |
2.057 |
2.88 |
12.0 |
|
12 |
37/28 |
0.087 |
2.210 |
0.084 |
2.130 |
0.105 |
2.667 |
0.100 |
2.540 |
1.90 |
19.0 |
|
10 |
37/26 |
0.110 |
2.790 |
0.106 |
2.690 |
0.127 |
3.226 |
0.122 |
3.099 |
1.19 |
29.0 |
|
8 |
133/29 |
0.166 |
4.220 |
0.158 |
4.010 |
0.206 |
5.232 |
0.188 |
4.775 |
0.66 |
61.8 |
|
6 |
133/27 |
0.208 |
5.280 |
0.198 |
5.030 |
0.251 |
6.375 |
0.228 |
5.791 |
0.42 |
95.1 |
|
4 |
133/25 |
0.263 |
6.680 |
0.250 |
6.350 |
0.306 |
7.772 |
0.280 |
7.112 |
0.27 |
148 |
|
2 |
665/30 |
0.340 |
8.640 |
0.320 |
8.130 |
0.378 |
9.601 |
0.350 |
8.890 |
0.17 |
235 |
