Application and Description：
Single-core polyperfluoroethylene propylene (FEP)/polyimide/polyperfluoroethylene propylene (FEP) tape-insulated M81381/14 wires are used in aerospace. These wires are very suitable for applications related to black smoke emission and overload stability.

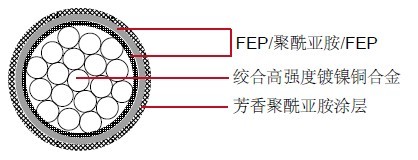

Structure：
Conductor：Twisted nickel-copper alloy with high strength
Insulation：Fluorinated ethylene-propylene (FEP)/polyimide/ Fluorinated ethylene-propylene (FEP) nsulated
Insulation wall thickness：0.0065"
Sheath：Aromatic polyimide coating
Characteristics：
Rated temperature：-55°C ~ + 200°C
Rated voltage：600 volts
Color Code：MIL-STD-104
10 Basic Colors(Black, brown, red, orange, yellow, green, blue, purple, grey, white)
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter（Max） |
Conductor diameter（Min） |
Wire diameter（Max） |
Wire diameter（Min） |
Maximum resistance @20°C
OHMS/MFT |
Weight LBS/MFT |
|
|
|
IN |
MM |
IN |
MM |
IN |
MM |
IN |
MM |
|
|
|
28 |
7/36 |
0.016 |
0.410 |
0.014 |
0.360 |
0.035 |
0.889 |
0.031 |
0.787 |
79.00 |
1.2 |
|
26 |
19/38 |
0.020 |
0.510 |
0.018 |
0.460 |
0.040 |
1.016 |
0.036 |
0.914 |
49.40 |
1.3 |
|
24 |
19/36 |
0.025 |
0.640 |
0.023 |
0.580 |
0.045 |
1.143 |
0.041 |
1.041 |
30.10 |
1.9 |
|
22 |
19/34 |
0.031 |
0.790 |
0.029 |
0.740 |
0.051 |
1.295 |
0.047 |
1.194 |
18.60 |
2.8 |
|
20 |
19/32 |
0.040 |
1.020 |
0.037 |
0.940 |
0.060 |
1.524 |
0.059 |
1.499 |
11.40 |
4.2 |
