Application and Description：
Single-core polyperfluoroethylene propylene (FEP)/polyimide/polyperfluoroethylene propylene (FEP) tape-insulated M81381/17 wires are used in aerospace. These wires are very suitable for applications related to black smoke emission and overload stability.

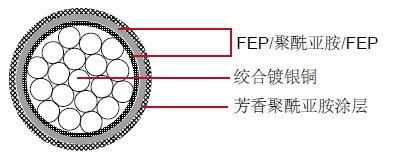

Structure：
Conductor：Twisted silver-plated copper
Insulation：Fluorinated ethylene-propylene (FEP)/polyimide/ Fluorinated ethylene-propylene (FEP) insulated
Insulation wall thickness：0.0065"
Sheath：Aromatic polyimide coating
Characteristics：
Rated temperature：-55°C ~ + 200°C
Rated voltage：600 volts
Color Code：MIL-STD-104
10 Basic Colors(Black, brown, red, orange, yellow, green, blue, purple, grey, white)
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter(Max) |
Conductor diameter(Min) |
Wire diameter(Max) |
Wire diameter(Min) |
Maximum resistance @ 20°C OHMS/
MFT |
Weight LBS/MFT |
|
|
|
IN |
MM |
IN |
MM |
IN |
MM |
IN |
MM |
|
|
|
26 |
19/38 |
0.019 |
0.480 |
0.018 |
0.460 |
0.03 |
0.762 |
0.028 |
0.700 |
38.40 |
1.2 |
|
24 |
19/36 |
0.024 |
0.610 |
0.023 |
0.580 |
0.035 |
0.889 |
0.032 |
0.800 |
24.30 |
1.8 |
|
22 |
19/34 |
0.030 |
0.760 |
0.029 |
0.740 |
0.041 |
1.041 |
0.038 |
1.000 |
15.10 |
2.6 |
|
20 |
19/32 |
0.038 |
0.970 |
0.037 |
0.940 |
0.049 |
1.245 |
0.046 |
1.200 |
9.19 |
4.1 |
|
18 |
19/30 |
0.048 |
1.220 |
0.046 |
1.170 |
0.058 |
1.473 |
0.055 |
1.400 |
5.79 |
6.3 |
|
16 |
19/29 |
0.054 |
1.370 |
0.052 |
1.320 |
0.065 |
1.651 |
0.062 |
1.600 |
4.52 |
7.9 |
|
14 |
19/27 |
0.068 |
1.730 |
0.065 |
1.650 |
0.078 |
1.981 |
0.075 |
1.900 |
2.88 |
12.3 |
|
12 |
37/28 |
0.087 |
2.210 |
0.084 |
2.130 |
0.098 |
2.489 |
0.094 |
2.400 |
1.90 |
19 |
