Application and Description：
Single-core polyperfluoroethylene propylene (FEP)/polyimide/polyperfluoroethylene propylene (FEP) tape-insulated M81381/18 wires are used in aerospace. These wires are very suitable for applications related to black smoke emission and overload stability.

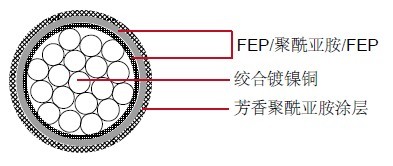

Structure：
Conductor：Twisted nickel-plated copper
Insulation：Fluorinated ethylene-propylene (FEP)/polyimide/ Fluorinated ethylene-propylene (FEP) insulated
Insulation wall thickness：0.0065"
Sheath：Aromatic polyimide coating
Characteristics：
Rated temperature：-55°C + 200°C
Rated voltage: 600 volts
Color Code：MIL-STD-104
10 Basic Colors(Black, brown, red, orange, yellow, green, blue, purple, grey, white)
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter（Max） |
Conductor diameter（Min） |
Wire diameter（Max） |
Wire diameter（Min） |
Maximum resistance @20°C OHMS/MFT |
Weight LBS/MFT |
|
|
|
IN |
MM |
IN |
MM |
IN |
MM |
IN |
MM |
|
|
|
26 |
19/38 |
0.020 |
0.510 |
0.018 |
0.460 |
0.030 |
0.762 |
0.028 |
0.711 |
42.20 |
1.2 |
|
24 |
19/36 |
0.024 |
0.610 |
0.023 |
0.580 |
0.035 |
0.889 |
0.032 |
0.813 |
25.90 |
1.8 |
|
22 |
19/34 |
0.031 |
0.790 |
0.029 |
0.740 |
0.041 |
1.041 |
0.038 |
0.965 |
16.00 |
2.6 |
|
20 |
19/32 |
0.039 |
0.990 |
0.037 |
0.940 |
0.049 |
1.245 |
0.046 |
1.168 |
9.77 |
4.1 |
|
18 |
19/30 |
0.049 |
1.240 |
0.046 |
1.170 |
0.058 |
1.473 |
0.055 |
1.397 |
6.10 |
6.3 |
|
16 |
19/29 |
0.055 |
1.400 |
0.052 |
1.320 |
0.065 |
1.651 |
0.062 |
1.575 |
4.76 |
7.9 |
|
14 |
19/27 |
0.069 |
1.750 |
0.065 |
1.650 |
0.078 |
1.981 |
0.075 |
1.905 |
3.00 |
12.3 |
|
12 |
37/28 |
0.089 |
2.260 |
0.084 |
2.130 |
0.098 |
2.489 |
0.094 |
2.388 |
1.98 |
19.0 |
