Application and Description：
Single-core polyperfluoroethylene propylene (FEP)/polyimide/polyperfluoroethylene propylene (FEP) tape-insulated M81381/19 wires are used in aerospace. These wires are very suitable for applications related to black smoke emission and overload stability.

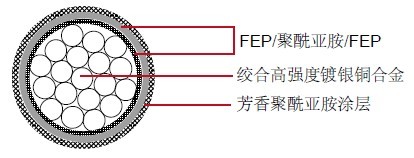

Structure：
Conductor：Twisted high strength silver-plated copper alloy
Insulation：Fluorinated ethylene-propylene (FEP)/polyimide/ Fluorinated ethylene-propylene (FEP) insulated
Insulation wall thickness：0.0065"
Sheath：Aromatic polyimide coating
Characteristics;
Rated temperature：-55°C ~ + 200°C
Rated voltage：600 volts
Color Code：MIL-STD-104
10 Basic Colors(Black, brown, red, orange, yellow, green, blue, purple, grey, white)
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter（Max） |
Conductor diameter（Min） |
Wire diameter（max） |
Wire diameter（Min） |
Maximum resistance @
20°C OHMS/
MFT |
Weight LBS/MFT |
|
|
|
IN |
MM |
IN |
MM |
IN |
MM |
IN |
MM |
|
|
|
30 |
7/38 |
0.012 |
0.300 |
0.011 |
0.280 |
0.024 |
0.610 |
0.021 |
0.533 |
117.40 |
0.6 |
|
28 |
7/36 |
0.150 |
0.380 |
0.014 |
0.360 |
0.027 |
0.686 |
0.024 |
0.610 |
74.40 |
0.8 |
|
26 |
19/38 |
0.200 |
0.510 |
0.018 |
0.460 |
0.030 |
0.762 |
0.028 |
0.711 |
44.80 |
1.2 |
|
24 |
19/36 |
0.024 |
0.610 |
0.023 |
0.580 |
0.035 |
0.889 |
0.032 |
0.813 |
28.40 |
1.8 |
|
22 |
19/34 |
0.031 |
0.790 |
0.029 |
0.740 |
0.041 |
1.041 |
0.038 |
0.965 |
17.50 |
2.6 |
|
20 |
19/32 |
0.039 |
0.990 |
0.037 |
0.940 |
0.050 |
1.270 |
0.047 |
1.194 |
10.70 |
4.1 |
