Application and Description：
Single-core polyperfluoroethylene propylene (FEP)/polyimide/polyperfluoroethylene propylene (FEP) tape-insulated M81381/21 wires are used in aerospace. These wires are very suitable for applications related to black smoke emission and overload stability.

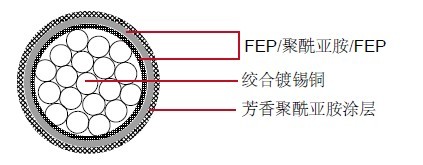

Structure：
Conductor：Twisted tin-plated copper
Insulation：Fluorinated ethylene-propylene (FEP)/polyimide/ Fluorinated ethylene-propylene (FEP) insulated
Insulation wall thickness：0.0065"
Sheath：Aromatic polyimide coating
Characteristics：
Rated temperature：-55°C ~ + 150°C
Rated voltage：600 volts
Color Code：MIL-STD-104 (见42页)
10 Basic Colors(Black, brown, red, orange, yellow, green, blue, purple, grey, white)
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter（Max） |
Conductor diameter（Min） |
Wire diameter（Max） |
Wire diameter（Min） |
Maximum resistance @
20°C OHMS/
MFT |
Weight LBS/MFT |
|
|
|
IN |
MM |
IN |
MM |
IN |
MM |
IN |
MM |
|
|
|
26 |
19/38 |
0.021 |
0.530 |
0.018 |
0.460 |
0.034 |
0.864 |
0.030 |
0.762 |
41.30 |
1.2 |
|
24 |
19/36 |
0.026 |
0.660 |
0.023 |
0.580 |
0.038 |
0.965 |
0.034 |
0.864 |
26.20 |
1.9 |
|
22 |
19/34 |
0.033 |
0.840 |
0.029 |
0.740 |
0.045 |
1.143 |
0.041 |
1.041 |
16.20 |
2.9 |
|
20 |
19/32 |
0.041 |
1.040 |
0.037 |
0.940 |
0.053 |
1.346 |
0.048 |
1.219 |
9.88 |
4.2 |
|
18 |
19/30 |
0.051 |
1.300 |
0.046 |
1.170 |
0.063 |
1.600 |
0.058 |
1.473 |
6.23 |
6.4 |
|
16 |
19/29 |
0.058 |
1.470 |
0.052 |
1.320 |
0.069 |
1.753 |
0.064 |
1.626 |
4.81 |
8.2 |
|
14 |
19/27 |
0.073 |
1.850 |
0.065 |
1.650 |
0.083 |
2.108 |
0.077 |
1.956 |
3.06 |
12.5 |
|
12 |
37/28 |
0.090 |
2.290 |
0.084 |
2.130 |
0.102 |
2.591 |
0.097 |
2.464 |
2.02 |
20.4 |
|
10 |
37/26 |
0.114 |
2.900 |
0.106 |
2.690 |
0.125 |
3.175 |
0.120 |
3.048 |
1.26 |
32.0 |
