Application and Description：
Single-core polyperfluoroethylene propylene (FEP)/polyimide/polyperfluoroethylene propylene (FEP) tape-insulated M81381/22 wires are used in aerospace. These wires are very suitable for applications related to black smoke emission and overload stability.

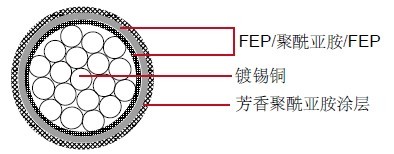

Structure：
Conductor：Tin-plated copper
Insulation：Fluorinated ethylene-propylene (FEP)/polyimide/ Fluorinated ethylene-propylene (FEP) insulated
Insulation wall thickness：
0.0065"(Less than or equal to 10 AWG ), Or polyamide knitting (More than or equal to 8 AWG), (0.0084" or 0.0170" )
Sheath：Aromatic polyimide coating
Characteristics：
Rated temperature： -55°C ~ + 150°C
Rated voltage：600 volts
Color Code：MIL-STD-104
10 Basic Colors(Black, brown, red, orange, yellow, green, blue, purple, grey, white)
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter（Max） |
Conductor diameter（Min） |
Wire
diameter（Max） |
Wire diameter（Min） |
Maximum resistance @20°C OHMS/MFT |
Weight LBS/MFT |
|
|
|
IN |
MM |
IN |
MM |
IN |
MM |
IN |
MM |
|
|
|
24 |
19/36 |
0.026 |
0.660 |
0.023 |
0.580 |
0.044 |
1.118 |
0.040 |
1.016 |
26.2 |
2.1 |
|
22 |
19/34 |
0.033 |
0.840 |
0.029 |
0.740 |
0.049 |
1.245 |
0.045 |
1.143 |
16.2 |
3.0 |
|
20 |
19/32 |
0.041 |
1.040 |
0.037 |
0.940 |
0.058 |
1.473 |
0.053 |
1.346 |
9.88 |
4.5 |
|
18 |
19/30 |
0.051 |
1.300 |
0.046 |
1.170 |
0.068 |
1.727 |
0.063 |
1.600 |
6.23 |
6.7 |
|
16 |
19/29 |
0.058 |
1.470 |
0.052 |
1.320 |
0.074 |
1.880 |
0.068 |
1.727 |
4.81 |
8.4 |
|
14 |
19/27 |
0.073 |
1.850 |
0.035 |
1.650 |
0.089 |
2.261 |
0.081 |
2.057 |
3.06 |
13.0 |
|
12 |
37/28 |
0.090 |
2.290 |
0.084 |
2.130 |
0.107 |
2.718 |
0.100 |
2.540 |
2.02 |
20.0 |
|
10 |
37/26 |
0.114 |
2.900 |
0.106 |
2.690 |
0.130 |
3.302 |
0.122 |
3.099 |
1.26 |
31.0 |
|
8 |
133/29 |
0.173 |
4.390 |
0.158 |
4.010 |
0.206 |
5.230 |
0.188 |
4.780 |
0.70 |
61.8 |
|
6 |
133/27 |
0.217 |
5.510 |
0.198 |
5.030 |
0.251 |
6.380 |
0.228 |
5.790 |
0.45 |
95.1 |
|
4 |
133/25 |
0.274 |
6.960 |
0.250 |
6.350 |
0.306 |
7.770 |
0.280 |
7.110 |
0.28 |
148.0 |
|
2 |
665/30 |
0.340 |
8.640 |
0.320 |
8.130 |
0.378 |
9.600 |
0.350 |
8.890 |
0.14 |
235.0 |
