Application and Description：
Single-core polyvinyl chloride (PVC) insulated MIL-W-16878/2 (Class C) wires are used in electrical and electronic applications, military and aerospace, and internal wiring of electronic equipment. These wires have the characteristics of flame retardant, chemical corrosion resistance, water resistance, oil, acid and solvent resistance.

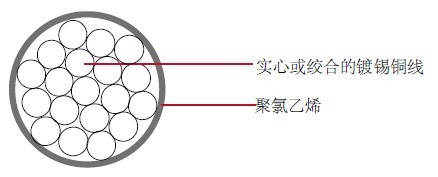

Structure：
Conductor：Solid or twisted tin-plated copper wire
Insulation：Polyvinyl chloride(PVC)
Insulation wall thickness：0.015"
Characteristics：
Rated temperature：-55°C ~ 105°C
Rated voltage：1000 volts
MIL-W-16878/2(Class C)
Color Code：MIL-STD-104
10 Basic Colors(Black, brown, red, orange, yellow, green, blue, purple, grey, white)
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter |
Wire diameter |
Weight LBS/MFT |
|
|
|
IN |
MM |
IN |
MM |
|
|
26 |
Solid |
0.016 |
0.404 |
0.054 |
1.270 |
2.0 |
|
26 |
7/34 |
0.019 |
0.483 |
0.057 |
1.350 |
2.0 |
|
26 |
19/38 |
0.019 |
0.483 |
0.057 |
1.350 |
2.0 |
|
24 |
Solid |
0.020 |
0.511 |
0.058 |
1.970 |
3.0 |
|
24 |
7/32 |
0.024 |
0.610 |
0.062 |
1.470 |
3.0 |
|
24 |
19/36 |
0.025 |
0.635 |
0.062 |
1.500 |
3.0 |
|
22 |
Solid |
0.025 |
0.643 |
0.064 |
1.500 |
4.0 |
|
22 |
7/30 |
0.030 |
0.762 |
0.068 |
1.630 |
4.0 |
|
22 |
19/34 |
0.030 |
0.762 |
0.068 |
1.630 |
4.0 |
|
20 |
Solid |
0.032 |
0.813 |
0.070 |
1.680 |
5.0 |
|
20 |
7/28 |
0.380 |
0.965 |
0.076 |
1.830 |
5.0 |
|
20 |
10/30 |
0.380 |
0.965 |
0.076 |
1.830 |
5.0 |
|
20 |
19/32 |
0.380 |
0.695 |
0.076 |
1.830 |
5.0 |
|
18 |
Solid |
0.403 |
1.020 |
0.079 |
1.910 |
8.0 |
|
18 |
7/26 |
0.480 |
1.220 |
0.087 |
2.080 |
8.0 |
|
18 |
19/30 |
0.480 |
1.220 |
0.087 |
2.080 |
8.0 |
|
16 |
Solid |
0.508 |
1.290 |
0.089 |
2.16 |
11.0 |
|
16 |
19/29 |
0.540 |
1.370 |
0.097 |
2.310 |
11.0 |
|
16 |
26/30 |
0.055 |
1.400 |
0.100 |
2.390 |
11.0 |
|
14 |
Solid |
0.641 |
1.630 |
0.102 |
2.490 |
15.0 |
|
14 |
19/27 |
0.690 |
1.750 |
0.105 |
2.670 |
15.0 |
|
14 |
41/30 |
0.071 |
1.800 |
0.118 |
2.840 |
18.0 |
|
12 |
19/25 |
0.089 |
2.260 |
0.129 |
3.150 |
23.0 |
|
12 |
37/28 |
0.089 |
2.260 |
0.127 |
3.350 |
23.0 |
