Application and Description：
Single-core PTFE insulated MIL-W-16878/6 (ET) wires are used in military, power supply wires, electronic wiring and medical electronics. US military standard wires have excellent thermal aging resistance, welding damage, flame and moisture. PTFE insulating materials provide high reliability and excellent thermal stability, chemical resistance, ultraviolet radiation and mold growth, solution resistance, grease resistance. Ozone and most other chemicals are non-toxic and safe to the surrounding environment. Compared with other insulation, PTFE insulation can save space and weight, and is easy to install.

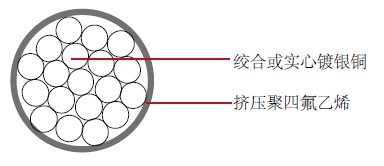

Structure：
Conductor：Stranded or solid silver plated copper
Insulation：extruded polytetrafluoroethylene(PTFE)
Insulation wall thickness：0.006"
Characteristics：
Rated temperature：-60°C ~ 200°C
Rated voltage：250 volts
MIL-W-16878/6( ET)
Color Code：MIL-STD-104
10 Basic Colors(Black, brown, red, orange, yellow, green, blue, purple, grey, white)
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter |
wIRe diameter |
Weight
LBS/MFT |
|
|
|
IN |
MM |
IN |
MM |
|
|
32 |
7/40 |
0.090 |
0.230 |
0.021 |
0.500 |
0.5 |
|
30 |
Solid |
0.010 |
0.254 |
0.022 |
0.600 |
0.6 |
|
30 |
7/38 |
0.012 |
0.310 |
0.024 |
0.600 |
0.7 |
|
28 |
Solid |
0.013 |
0.330 |
0.025 |
0.600 |
0.8 |
|
28 |
7/36 |
0.015 |
0.380 |
0.027 |
0.700 |
1.0 |
|
28 |
19/40 |
0.150 |
0.380 |
0.027 |
0.700 |
1.0 |
|
26 |
Solid |
0.016 |
0.410 |
0.028 |
0.700 |
1.2 |
|
26 |
19/38 |
0.019 |
0.480 |
0.031 |
0.800 |
1.4 |
|
26 |
7/34 |
0.019 |
0.480 |
0.031 |
0.800 |
1.3 |
|
24 |
Solid |
0.020 |
0.500 |
0.032 |
0.800 |
1.9 |
|
24 |
7/32 |
0.024 |
0.610 |
0.036 |
0.900 |
1.9 |
|
24 |
19/36 |
0.024 |
0.610 |
0.036 |
0.900 |
2.0 |
|
22 |
7/30 |
0.030 |
0.760 |
0.042 |
1.100 |
2.9 |
|
20 |
7/28 |
0.038 |
0.970 |
0.046 |
1.200 |
4.3 |
|
20 |
19/32 |
0.038 |
0.970 |
0.046 |
1.200 |
4.7 |
