Application and Description：

Single-core FEP insulated MIL-W-16878/11 (K class) wires for electronic equipment, motor leads and computer back panel

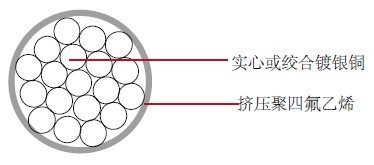

Structure：

Solid or stranded silver-plated copper

extruded polytetrafluoroethylene

Conductor：Solid or stranded silver-plated copper (These wires also have tin-plated copper conductors.)

Insulation：extruded polytetrafluoroethylene(PTFE)

Insulation wall thickness：0.010"

Characteristics：

Rated temperature：-55°C ~ +200°C

Rated voltage：600 volts

MIL-W-16878/11( K)

Color Code：MIL-STD-104

10 Basic Colors(Black, brown, red, orange, yellow, green, blue, purple, grey, white)

Size and weight：

AWG	Conductor stranding	Conductor diameter		Wire diameter		Weight LBS/MFT
		IN	MM	IN	MM
32	7/40	0.009	0.229	0.029	0.737	1.0
32	19/44	0.010	0.254	0.030	0.762	1.0
30	Solid	0.010	0.254	0.030	0.762	1.0
30	7/38	0.012	0.305	0.032	0.813	1.0
30	16/42	0.012	0.305	0.032	0.813	1.0
28	Solid	0.013	0.330	0.033	0.838	2.0
28	7/36	0.015	0.381	0.035	0.889	2.0
28	19/40	0.015	0.381	0.035	0.889	2.0
26	Solid	0.016	0.406	0.036	0.914	2.0
26	7/34	0.019	0.483	0.039	0.991	2.0
26	19/38	0.019	0.483	0.039	0.991	2.0
24	Solid	0.020	0.508	0.040	1.016	3.0
24	7/32	0.024	0.610	0.044	1.118	3.0
24	19/36	0.024	0.610	0.044	1.118	3.0
22	Solid	0.025	0.635	0.045	1.143	4.0
22	7/30	0.030	0.762	0.050	1.270	4.0
22	19/34	0.030	0.762	0.050	1.270	4.0
20	Solid	0.032	0.813	0.050	1.270	5.0
20	7/28	0.036	0.914	0.058	1.473	5.0
20	19/32	0.038	0.965	0.058	1.473	5.0
18	7/26	0.048	1.219	0.069	1.753	8.0
18	19/30	0.047	1.194	0.069	1.753	8.0
16	19/29	0.053	1.346	0.080	2.032	10.0
14	19/27	0.067	1.702	0.094	2.388	15.0
12	19/25	0.084	2.134	0.113	2.870	23.0
10	37/26	0.110	2.794	0.132	3.353	35.0
8	133/29	0.162	4.115	0.190	4.826	60.0
