Application and Description：
Single-core FEP insulated MIL-W-16878/12 (KK class) wires for electronic equipment, motor leads and computer back panel

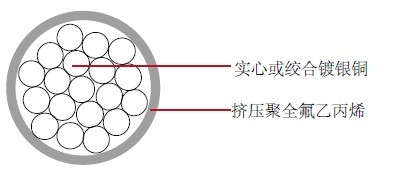

Structure：
Conductor：Solid or stranded silver-plated copper(These wires also have tin-plated copper conductors.)
Insulation：Extruded FEP(FEP)
Insulation wall thickness：0.015"
Characteristics：
Rated temperature：-60°C ~ +200°C
Rated voltage：1000 volts
MIL-W-16878/12( KK)
Color Code：MIL-STD-104
10 Basic Colors(Black, brown, red, orange, yellow, green, blue, purple, grey, white)
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter |
Wire diameter |
Weight LBS/MFT |
|
|
|
IN |
MM |
IN |
MM |
|
|
32 |
7/40 |
0.009 |
0.229 |
0.038 |
0.965 |
1.3 |
|
32 |
19/44 |
0.010 |
0.254 |
0.038 |
0.965 |
1.3 |
|
30 |
7/38 |
0.012 |
0.305 |
0.042 |
1.067 |
1.5 |
|
30 |
19/42 |
0.012 |
0.305 |
0.042 |
1.067 |
1.6 |
|
28 |
7/36 |
0.015 |
0.381 |
0.045 |
1.143 |
1.9 |
|
28 |
19/40 |
0.015 |
0.381 |
0.045 |
1.143 |
2.0 |
|
26 |
7/34 |
0.019 |
0.483 |
0.049 |
1.245 |
2.4 |
|
26 |
19/38 |
0.019 |
0.483 |
0.054 |
1.372 |
2.5 |
|
24 |
7/32 |
0.024 |
0.610 |
0.054 |
1.372 |
3.1 |
|
24 |
19/36 |
0.024 |
0.610 |
0.054 |
1.372 |
3.2 |
|
22 |
7/30 |
0.030 |
0.762 |
0.060 |
1.524 |
4.2 |
|
22 |
19/34 |
0.030 |
0.762 |
0.060 |
1.524 |
4.4 |
|
20 |
7/28 |
0.038 |
0.965 |
0.068 |
1.727 |
5.8 |
|
20 |
19/32 |
0.038 |
1.219 |
0.068 |
1.727 |
6.2 |
|
18 |
7/26 |
0.048 |
1.194 |
0.079 |
2.007 |
8.3 |
|
18 |
19/30 |
0.047 |
1.346 |
0.079 |
2.007 |
8.5 |
|
16 |
19/29 |
0.053 |
1.702 |
0.089 |
2.261 |
11.0 |
|
14 |
19/27 |
0.067 |
2.134 |
0.105 |
2.667 |
16.3 |
|
12 |
19/25 |
0.084 |
2.819 |
0.124 |
3.150 |
24.7 |
|
10 |
37/26 |
0.111 |
4.115 |
0.145 |
3.683 |
36.7 |
|
8 |
133/29 |
0.162 |
5.258 |
0.207 |
5.258 |
63.1 |
|
6 |
133/27 |
0.207 |
6.502 |
0.291 |
7.391 |
115.0 |
|
4 |
133/25 |
0.256 |
8.382 |
0.356 |
9.042 |
178.0 |
|
2 |
655/30 |
0.330 |
8.4 |
0.405 |
10.287 |
268.0 |
