Application and Description：
Single-core FEP insulated MIL-W-16878/13 (KT class) wires for electronic equipment, motor leads and computer back panel

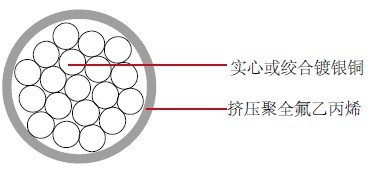

Structure：
Solid or stranded silver-plated copper
Extruded FEP
Conductor：Solid or stranded silver-plated copper(These wires also have tin-plated copper conductors)
Insulation：Extruded FEP(FEP)
Insulation wall thickness：0.006"
Characteristics：
Rated temperature： -55°C ~ +200°C
Rated voltage：250 volts
MIL-W-16878/13( KT)
Color Code：MIL-STD-104
10 Basic Colors(Black, brown, red, orange, yellow, green, blue, purple, grey, white)
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter |
wire diameter |
Weight
LBS/MFT |
|
|
|
IN |
MM |
IN |
MM |
|
|
36 |
7/44 |
0.006 |
0.152 |
0.018 |
0.457 |
0.3 |
|
34 |
Solid |
0.006 |
0.152 |
0.018 |
0.457 |
0.3 |
|
34 |
7/42 |
0.008 |
0.203 |
0.020 |
0.508 |
0.4 |
|
32 |
Solid |
0.008 |
0.203 |
0.020 |
0.508 |
0.5 |
|
32 |
7/40 |
0.009 |
0.229 |
0.022 |
0.559 |
0.5 |
|
32 |
19/44 |
0.010 |
0.254 |
0.022 |
0.559 |
0.5 |
|
30 |
Solid |
0.010 |
0.254 |
0.022 |
0.559 |
0.6 |
|
30 |
7/38 |
0.012 |
0.305 |
0.024 |
0.610 |
0.7 |
|
30 |
19/42 |
0.012 |
0.305 |
0.024 |
0.610 |
0.7 |
|
28 |
Solid |
0.013 |
0.330 |
0.025 |
0.635 |
0.8 |
|
28 |
7/36 |
0.015 |
0.381 |
0.027 |
0.686 |
0.9 |
|
28 |
19/40 |
0.015 |
0.381 |
0.027 |
0.686 |
1.0 |
|
26 |
Solid |
0.016 |
0.406 |
0.028 |
0.711 |
1.2 |
|
26 |
7/34 |
0.019 |
0.483 |
0.031 |
0.787 |
1.3 |
|
26 |
19/36 |
0.019 |
0.483 |
0.031 |
0.787 |
1.4 |
|
24 |
7/32 |
0.024 |
0.610 |
0.036 |
0.914 |
1.9 |
|
24 |
19/36 |
0.024 |
0.610 |
0.036 |
0.914 |
2.0 |
|
22 |
7/30 |
0.030 |
0.762 |
0.042 |
1.067 |
2.9 |
|
22 |
19/34 |
0.030 |
0.762 |
0.042 |
1.067 |
3.0 |
|
20 |
7/28 |
0.038 |
0.965 |
0.050 |
1.270 |
4.5 |
|
20 |
19/32 |
0.038 |
0.965 |
0.050 |
1.270 |
4.6 |
