Application and Description:



The single core U.S. military standard MIL-W-22759/1 insulated wire is extruded ETFE is used in military, aerospace and other fields. It has the characteristics of light weight and excellent mechanical toughness. The extruded ETFE insulation also has good radiation resistance and chemical corrosion resistance.

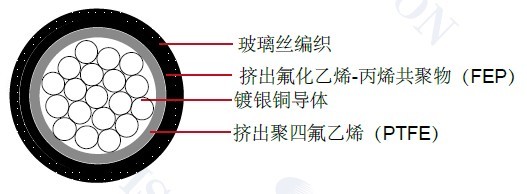

Structure:



Conductor：Silver-plated copper conductor



Insulation：Extruded polytetrafluoroethylene (PTFE), Extruded copolymer of ethylene fluoride and propylene(FEP), glass-Woven wires are used in military



Thickness of Insulation Material：54 mil ( 1.4 mm) ~ 125 mil ( 3.2mm)



Characteristics：



Rated temperature：200°C



Rated voltage：600 volts



SAE AS22759/1



Color code：MIL-STD-681



Size and weight：

WG	Conductor stranding	Conductor diameter ( Min)		Conductor diameter (Max)		Wire diameter (Min)		Wire diameter (Max)		Weight LBS/MFT
		IN	MM	IN	MM	IN	MM	IN	MM
22	19/34	0.029	0.737	0.032	0.813	0.08	2.032	0.088	2.235	7.5
20	19/32	0.037	0.940	0.040	1.016	0.09	2.286	0.098	2.489	9.5
18	19/30	0.046	1.168	0.050	1.270	0.100	2.540	0.110	2.794	13.0
16	19/29	0.052	1.321	0.057	1.448	0.115	2.921	0.125	3.175	16.5
14	19/27	0.065	1.651	0.072	1.829	0.133	3.378	0.143	3.632	23.0
12	37/28	0.084	2.134	0.089	2.261	0.152	3.861	0.162	4.115	32.1
10	37/16	0.406	10.312	0.112	2.845	0.174	4.420	0.188	4.775	47
8	133/29	0.158	4.013	0.169	4.293	0.241	6.121	0.255	6.477	82
6	133/27	0.198	5.029	0.213	5.410	0.283	7.188	0.303	7.696	122
4	133/25	0.250	6.350	0.268	6.807	0.400	10.160	0.43	10.922	180
2	665/30	0.320	8.128	0.340	8.636	0.405	10.287	0.435	11.049	275
1	817/30	0.360	9.144	0.380	9.652	0.455	11.557	0.485	12.319	348
1/0	1045/30	0.395	10.033	0.425	10.795	0.495	12.573	0.535	13.589	429
2/0	1330/30	0.440	11.176	0.475	12.065	0.555	14.097	0.595	15.113	542
3/0	1665/30	0.500	12.70	0.540	13.716	0.620	15.748	0.660	16.764	668
4/0	2109/30	0.565	14.351	0.605	15.367	0.69	17.526	0.730	18.542	835
