Application and Description：
The single core U.S. military standard MIL-W-22759/3 insulation is extruded polytetrafluoroethylene (PTFE), extruded ethylene fluoride-propylene copolymer (FEP), and glass-Woven wires are used in military, aerospace, naval ships, electronics and other industrial fields. Wires can operate in extremely harsh environments, and wear-resistant, vibration-resistant, fire-resistant.

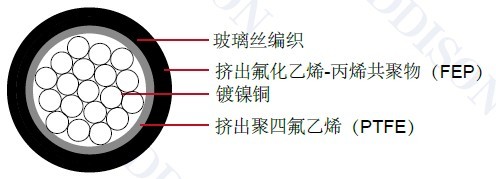

Structure：
Conductor：nickel-plated copper
Insulation：Extruded polytetrafluoroethylene (PTFE), Extruded copolymer of ethylene fluoride and propylene(FEP), glass-Woven wires are used in military
Insulation thickness：40 mil ( 1.0 mm) ~ 125 mil ( 3.2mm)
Characteristics：
Rated temperature: 260°C
Rated voltage: 600 volts
SAE AS22759/3
Color code：MIL-STD-681
尺寸和重量：
|
AWG |
Size and weight |
Conductor diameter (Min)
|
Conductor diameter (Max)
|
WIRE diameter (Min)
|
WIRE diameter(Max)
|
Weight
LBS/MFT |
|
|
|
IN |
MM |
IN |
MM |
IN |
MM |
IN |
MM |
|
|
22 |
19/34 |
0.029 |
0.737 |
0.033 |
0.838 |
0.08 |
2.032 |
0.088 |
2.235 |
5.9 |
|
20 |
19/32 |
0.037 |
0.940 |
0.041 |
1.041 |
0.09 |
2.286 |
0.098 |
2.489 |
7.9 |
|
18 |
19/30 |
0.046 |
1.168 |
0.051 |
1.295 |
0.10 |
2.540 |
0.110 |
2.794 |
11.0 |
|
16 |
19/29 |
0.052 |
1.321 |
0.058 |
1.473 |
0.115 |
2.921 |
0.125 |
3.175 |
13.6 |
|
14 |
19/27 |
0.065 |
1.651 |
0.073 |
1.854 |
0.133 |
3.378 |
0.143 |
3.632 |
18.5 |
|
12 |
37/28 |
0.084 |
2.134 |
0.090 |
2.286 |
0.152 |
3.861 |
0.162 |
4.115 |
26.6 |
|
10 |
37/16 |
0.106 |
2.692 |
0.114 |
2.896 |
0.174 |
4.420 |
0.188 |
4.775 |
41.5 |
|
8 |
133/29 |
0.158 |
4.013 |
0.173 |
4.394 |
0.241 |
6.121 |
0.255 |
6.477 |
77.4 |
|
6 |
133/27 |
0.198 |
5.029 |
0.217 |
5.512 |
0.283 |
7.188 |
0.303 |
7.696 |
115.0 |
|
4 |
133/25 |
0.250 |
6.350 |
0.274 |
6.960 |
0.40 |
10.16 |
0.430 |
10.922 |
184.0 |
|
2 |
665/30 |
0.320 |
8.128 |
0.340 |
8.636 |
0.405 |
10.287 |
0.435 |
11.049 |
281.0 |
|
1 |
817/30 |
0.360 |
9.144 |
0.380 |
9.652 |
0.455 |
11.557 |
0.485 |
12.319 |
358.0 |
|
1/0 |
1045/30 |
0.395 |
10.033 |
0.425 |
10.795 |
0.495 |
12.573 |
0.535 |
13.589 |
436.0 |
|
2/0 |
1330/30 |
0.440 |
11.176 |
0.475 |
12.065 |
0.555 |
14.097 |
0.595 |
15.113 |
554.0 |
