Application and Description：
The single core U.S. military standard MIL-W-22759/4 insulation is extruded polytetrafluoroethylene (PTFE), extruded ethylene fluoride-propylene copolymer (FEP), and glass-Woven wires are used in military, aerospace, naval ships, electronics and other industrial fields. Wires can operate in extremely harsh environments, and wear-resistant, vibration-resistant, fire-resistant.

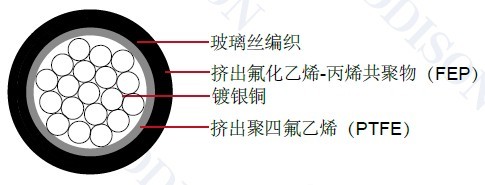

Structure：
Conductor：Silver plated copper
Insulation：Extruded polytetrafluoroethylene (PTFE), Extruded copolymer of ethylene fluoride and propylene(FEP), Glass wool knitting
Insulation thickness：25 mil ( 0.6 mm) ~ 44 mil ( 1.1mm)
characteristics：
Rated temperature: 200°C
Rated voltage：600 volts
SAE AS22759/4
Color code：MIL-STD-681
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter (Min) |
Conductor diameter (Max) |
Wire
diameter (Min) |
Wire
diameter (Max) |
Weight
LBS/
MFT |
|
|
|
IN |
MM |
IN |
MM |
IN |
MM |
IN |
MM |
|
|
22 |
19/34 |
0.029 |
0.724 |
0.030 |
0.772 |
0.071 |
1.803 |
0.077 |
1.956 |
5.9 |
|
20 |
19/32 |
0.037 |
0.927 |
0.039 |
0.975 |
0.079 |
2.007 |
0.085 |
2.159 |
7.9 |
|
18 |
19/30 |
0.046 |
1.156 |
0.048 |
1.229 |
0.092 |
2.337 |
0.098 |
2.489 |
11.0 |
|
16 |
19/29 |
0.052 |
1.308 |
0.054 |
1.382 |
0.990 |
25.146 |
0.998 |
25.349 |
13.6 |
|
14 |
19/27 |
0.065 |
1.638 |
0.068 |
1.737 |
0.112 |
2.845 |
0.120 |
3.048 |
18.5 |
|
12 |
37/28 |
0.084 |
2.121 |
0.087 |
2.220 |
0.129 |
3.277 |
0.137 |
3.48 |
26.6 |
|
10 |
37/26 |
0.106 |
2.692 |
0.110 |
2.794 |
0.159 |
4.039 |
0.171 |
4.343 |
41.5 |
|
8 |
133/29 |
0.158 |
4.013 |
0.166 |
4.216 |
0.228 |
5.791 |
0.242 |
6.147 |
77.4 |
|
6 |
133/27 |
0.198 |
5.029 |
0.208 |
5.283 |
0.272 |
6.909 |
0.292 |
7.417 |
115.0 |
|
4 |
133/25 |
0.250 |
6.350 |
0.263 |
6.680 |
0.336 |
8.534 |
0.366 |
9.296 |
184.0 |
|
2 |
665/30 |
0.320 |
8.128 |
0.340 |
8.636 |
0.415 |
10.541 |
0.445 |
11.303 |
281.0 |
|
1 |
817/30 |
0.366 |
9.296 |
0.380 |
9.652 |
0.465 |
11.811 |
0.495 |
12.573 |
358.0 |
|
1/0 |
1045/30 |
0.395 |
10.033 |
0.425 |
10.795 |
0.500 |
12.700 |
0.550 |
13.97 |
436.0 |
|
2/0 |
1330/30 |
0.440 |
11.176 |
0.475 |
12.065 |
0.560 |
14.224 |
0.610 |
15.494 |
554.0 |
