Application and Description：
The single core U.S. military standard MIL-W-22759/6 insulation is extruded polytetrafluoroethylene (PTFE) Wires with mineral filling insulation which are used in military, aerospace and other fields. Government wires and wires are used in aircraft engines with good wear resistance and flexibility.
Structure：

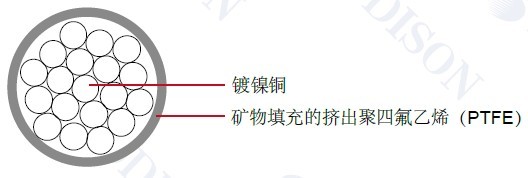

Conductor:nickel-plated copper
Insulation:Mineral filled Extruded polytetrafluoroethylene(PTFE)
Insulation thickness:25 mil ( 0.6 mm) ~ 44 mil ( 1.1mm)
Characteristics：
Rated temperature:260°C
Rated voltage:600 volts
SAE AS22759/6
Color code:MIL-STD-681
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter (Min)
|
Conductor diameter (Max)
|
WIRE diameter(Min)
|
WIRE diameter(Max)
|
Weight
LBS/
MFT |
|
|
|
IN |
MM |
IN |
MM |
IN |
MM |
IN |
MM |
|
|
24 |
19/36 |
0.023 |
0.584 |
0.026 |
0.660 |
0.070 |
1.78 |
0.08 |
2.03 |
6.0 |
|
22 |
19/34 |
0.029 |
0.737 |
0.031 |
0.787 |
0.080 |
2.03 |
0.09 |
2.29 |
8.0 |
|
20 |
19/32 |
0.037 |
0.940 |
0.039 |
0.991 |
0.090 |
2.29 |
0.10 |
2.54 |
10.0 |
|
18 |
19/30 |
0.046 |
1.168 |
0.049 |
1.245 |
0.105 |
2.67 |
0.12 |
2.92 |
13.1 |
|
16 |
19/29 |
0.052 |
1.321 |
0.053 |
1.346 |
0.120 |
3.05 |
0.13 |
3.30 |
16.9 |
|
14 |
19/27 |
0.065 |
1.651 |
0.069 |
1.753 |
0.136 |
3.45 |
0.15 |
3.81 |
23.3 |
|
12 |
19/25 |
0.084 |
2.134 |
0.089 |
2.261 |
0.153 |
3.89 |
0.17 |
4.24 |
31.9 |
|
10 |
37/26 |
0.106 |
2.692 |
0.112 |
2.845 |
0.172 |
4.37 |
0.19 |
4.73 |
43.5 |
|
8 |
133/29 |
0.158 |
4.013 |
0.169 |
4.293 |
0.241 |
6.12 |
0.26 |
6.48 |
79.0 |
|
6 |
133/27 |
0.198 |
5.029 |
0.213 |
5.410 |
0.283 |
7.19 |
0.30 |
7.70 |
127.0 |
|
4 |
133/29 |
0.250 |
6.350 |
0.268 |
6.807 |
0.400 |
10.16 |
0.43 |
10.92 |
190.0 |
