Application and Description
The single core U.S. military standard MIL-W-22759/10 insulation is extruded PTFE wires are used in military and aerospace fields. The wires are used in aircraft engines with non-thermal shrinkage and excellent mechanical toughness. They are anti-salt fog, anti-mildew, anti-humidity and heat, and excellent anti-high energy radiation. They can provide high reliability services in harsh environments.

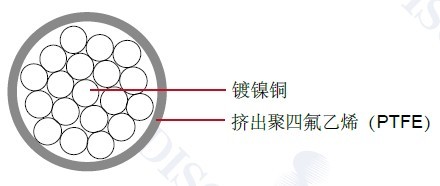

Structure：
Conductor:Nickel plated copper
Insulation:Extruded polytetrafluoroethylene (PTFE)
Insulation thickness:14 mil ( 0.4 mm)
Characteristics：
Rated temperature: 260°C
Rated voltage:1000 volts
SAE AS22759/10
Color code:MIL-STD-681
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter (Min ) |
Conductor diameter (Max) |
WIRE diameter(Min) |
WIRE diameter(Max) |
Weight
LBS/ MFT |
|
|
|
IN |
MM |
IN |
MM |
IN |
MM |
IN |
MM |
|
|
28 |
7/36 |
0.014 |
0.356 |
0.016 |
0.406 |
0.041 |
1.041 |
0.045 |
1.143 |
1.9 |
|
26 |
19/38 |
0.016 |
0.406 |
0.022 |
0.559 |
0.046 |
1.168 |
0.050 |
1.270 |
2.6 |
|
24 |
19/36 |
0.023 |
0.584 |
0.026 |
0.660 |
0.051 |
1.295 |
0.055 |
1.397 |
3.3 |
|
22 |
19/34 |
0.029 |
0.737 |
0.033 |
0.838 |
0.058 |
1.473 |
0.062 |
1.575 |
4.6 |
|
20 |
19/32 |
0.037 |
0.940 |
0.041 |
1.041 |
0.066 |
1.676 |
0.070 |
1.778 |
6.4 |
|
18 |
19/30 |
0.046 |
1.168 |
0.052 |
1.321 |
0.076 |
1.93 |
0.080 |
2.032 |
9.1 |
|
16 |
19/29 |
0.052 |
1.321 |
0.058 |
1.473 |
0.083 |
2.108 |
0.087 |
2.210 |
11.0 |
|
14 |
19/27 |
0.065 |
1.651 |
0.073 |
1.854 |
0.097 |
2.464 |
0.103 |
2.616 |
16.4 |
|
12 |
19/25 |
0.087 |
2.210 |
0.092 |
2.337 |
0.116 |
2.946 |
0.124 |
3.150 |
25.3 |
|
10 |
37/26 |
0.106 |
2.692 |
0.114 |
2.896 |
0.137 |
3.48 |
0.145 |
3.683 |
38.2 |
|
8 |
133/29 |
0.158 |
4.013 |
0.173 |
4.394 |
0.202 |
5.131 |
0.212 |
5.385 |
68.8 |
