Application and Description:
The single core U.S. military standard MIL-W-22759/11 insulation is extruded PTFE wires are used in military and aerospace fields. The wires are used in aircraft engines with non-thermal shrinkage and excellent mechanical toughness. They are anti-salt fog, anti-mildew, anti-humidity and heat, and excellent anti-high energy radiation. They can provide high reliability services in harsh environments.

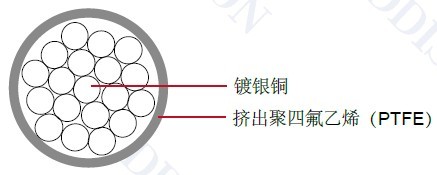

Structure：
Conductor:Silver plated copper
Insulation:Extruded polytetrafluoroethylene (PTFE)
Insulation thickness:10 mil ( 0.25 mm)
Characteristics：
Rated temperature:200°C
Rated voltage:600 volts
SAE AS22759/11
Color code:MIL-STD-681
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter(Min) |
Conductor diameter(Max) |
WIRE diameter(Min) |
WIRE diameter(Max) |
Weight
LBS/ MFT |
|
|
|
IN |
MM |
IN |
MM |
IN |
MM |
IN |
MM |
|
|
28 |
7/36 |
0.014 |
0.356 |
0.015 |
0.381 |
0.031 |
0.787 |
0.035 |
0.889 |
1.22 |
|
26 |
19/38 |
0.018 |
0.457 |
0.020 |
0.508 |
0.036 |
0.914 |
0.040 |
1.016 |
1.74 |
|
24 |
19/36 |
0.023 |
0.584 |
0.025 |
0.635 |
0.041 |
1.041 |
0.045 |
1.143 |
2.41 |
|
22 |
19/34 |
0.029 |
0.724 |
0.030 |
0.772 |
0.047 |
1.194 |
0.051 |
1.295 |
3.44 |
|
20 |
19/32 |
0.037 |
0.927 |
0.038 |
0.975 |
0.056 |
1.422 |
0.060 |
1.524 |
5.15 |
|
18 |
19/30 |
0.046 |
1.156 |
0.048 |
1.229 |
0.066 |
1.676 |
0.070 |
1.778 |
7.58 |
|
16 |
19/29 |
0.052 |
1.308 |
0.054 |
1.382 |
0.073 |
1.854 |
0.077 |
1.956 |
9.64 |
|
14 |
19/27 |
0.066 |
1.638 |
0.068 |
1.737 |
0.088 |
2.235 |
0.092 |
2.337 |
14.7 |
|
12 |
19/25 |
0.084 |
2.121 |
0.087 |
2.220 |
0.108 |
2.743 |
0.114 |
2.896 |
23.5 |
|
10 |
37/26 |
0.106 |
2.692 |
0.110 |
2.794 |
0.106 |
2.692 |
0.112 |
2.845 |
37.8 |
|
8 |
133/29 |
0.158 |
4.013 |
0.166 |
4.216 |
0.158 |
4.013 |
0.169 |
4.293 |
65.5 |
