Application and Description:

The single core U.S. military standard MIL-W-22759/12 insulation is extruded PTFE wires are used in military and aerospace fields. The wires are used in aircraft engines with non-thermal shrinkage and excellent mechanical toughness. They are anti-salt fog, anti-mildew, anti-humidity and heat, and excellent anti-high energy radiation. They can provide high reliability services in harsh environments.

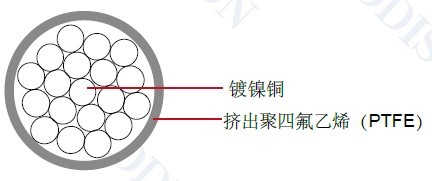

Structure：

Conductor:Nickel plated copper

Insulation:Extruded polytetrafluoroethylene (PTFE)

Insulation thickness: 10 mil ( 0.25 mm)

Characteristics：

Rated temperature:260°C

Rated voltage:600 volts

SAE AS22759/12

Color code:MIL-STD-681

Size and weight：
