Application and Description：
The single core U.S. military standard MIL-W-22759/13 insulation is extruded ethylene fluoride-propylene copolymer (FEP) wires for military, aerospace and other fields

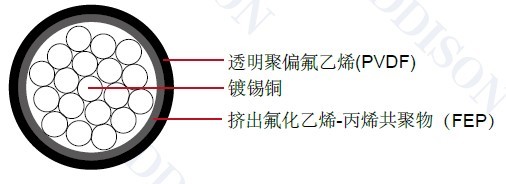

Structure：
Conductor:Tin plated copper
Insulation:Extruded copolymer of ethylene fluoride and propylene(FEP)
Sheath:Transparent polyvinylidene fluoride(PVDF)
Insulation thickness:11 mil ( 0.30 mm)
Characteristics：
Rated temperature:135°C
Rated voltage:600 volts
SAE AS22759/13
Color code:MIL-STD-681
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter(Min) |
Conductor diameter(Max) |
WIRE diameter(Min) |
WIRE diameter(Max) |
Weight
LBS/MFT |
|
|
|
IN |
MM |
IN |
MM |
IN |
MM |
IN |
MM |
|
|
24 |
19/36 |
0.023 |
0.584 |
0.025 |
0.635 |
0.047 |
1.194 |
0.051 |
1.295 |
2.9 |
|
22 |
19/34 |
0.029 |
0.724 |
0.030 |
0.772 |
0.048 |
1.219 |
0.054 |
1.372 |
3.9 |
|
20 |
19/32 |
0.037 |
0.927 |
0.038 |
0.975 |
0.058 |
1.473 |
0.064 |
1.626 |
5.5 |
|
18 |
19/30 |
0.045 |
1.130 |
0.048 |
1.229 |
0.068 |
1.727 |
0.074 |
1.880 |
8.0 |
|
16 |
19/29 |
0.052 |
1.308 |
0.054 |
1.382 |
0.073 |
1.854 |
0.081 |
2.057 |
10.1 |
|
14 |
19/27 |
0.065 |
1.638 |
0.068 |
1.737 |
0.087 |
2.210 |
0.095 |
2.413 |
15.5 |
|
12 |
37/28 |
0.086 |
2.172 |
0.089 |
2.261 |
0.107 |
2.718 |
0.115 |
2.921 |
23.0 |
|
10 |
37/26 |
0.106 |
2.692 |
0.112 |
2.845 |
0.134 |
3.404 |
0.142 |
3.607 |
35.7 |
|
8 |
133/28 |
1.580 |
40.132 |
0.169 |
4.293 |
0.190 |
4.826 |
0.202 |
5.131 |
62.8 |
|
6 |
133/27 |
1.980 |
50.292 |
0.212 |
5.385 |
0.239 |
6.071 |
0.255 |
6.477 |
99.3 |
|
4 |
133/25 |
0.250 |
6.350 |
0.268 |
6.807 |
0.292 |
7.417 |
0.308 |
7.823 |
153.0 |
|
2 |
665/30 |
0.320 |
8.128 |
0.340 |
8.636 |
0.362 |
9.195 |
0.386 |
9.804 |
247.0 |
|
1 |
817/30 |
0.360 |
9.144 |
0.380 |
9.652 |
0.398 |
10.109 |
0.426 |
10.82 |
311.0 |
|
1/0 |
1045/30 |
0.405 |
10.287 |
0.425 |
10.795 |
0.442 |
11.227 |
0.474 |
12.04 |
387.0 |
