Application and Description:
The single core U.S. military standard MIL-W-22759/14 insulation is extruded ethylene fluoride-propylene copolymer (FEP) wires for military, aerospace and other fields

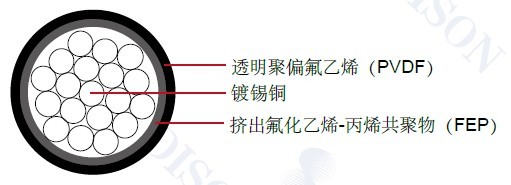

Structure：
Conductor:Tin plated copper
Insulation:Extruded copolymer of ethylene fluoride and propylene(FEP)
Sheath：Transparent polyvinylidene fluoride(PVDF)
Insulation thickness: 8 mil ( 0.2 mm)
Characteristics：
Rated temperature:135°C
Rated voltage:600 volts
SAE AS22759/14
Color code:MIL-STD-681
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter(Min) |
Conductor diameter(Max) |
Wire diameter(Min) |
Wire diameter(Max) |
Weight
LBS/MFT |
|
|
|
IN |
MM |
IN |
MM |
IN |
MM |
IN |
MM |
|
|
26 |
19/38 |
0.018 |
0.457 |
0.020 |
0.508 |
0.035 |
0.889 |
0.039 |
0.991 |
1.8 |
|
24 |
19/36 |
0.023 |
0.584 |
0.024 |
0.610 |
0.040 |
1.016 |
0.044 |
1.118 |
2.47 |
|
22 |
19/34 |
0.029 |
0.724 |
0.031 |
0.787 |
0.045 |
1.143 |
0.051 |
1.295 |
3.53 |
|
20 |
19/32 |
0.037 |
0.927 |
0.039 |
0.991 |
0.053 |
1.346 |
0.059 |
1.499 |
5.13 |
|
18 |
19/30 |
0.046 |
1.156 |
0.049 |
1.245 |
0.063 |
1.600 |
0.069 |
1.753 |
7.64 |
|
16 |
19/29 |
0.052 |
1.308 |
0.055 |
1.397 |
0.067 |
1.702 |
0.075 |
1.905 |
9.34 |
|
14 |
19/27 |
0.065 |
1.638 |
0.069 |
1.753 |
0.083 |
2.108 |
0.091 |
2.311 |
14.4 |
|
12 |
37/28 |
0.084 |
2.134 |
0.089 |
2.261 |
0.103 |
2.616 |
0.111 |
2.819 |
22.3 |
