Application and Description：
The single core U.S. military standard MIL-W-22759/15 insulation is extruded ethylene fluoride-propylene copolymer (FEP) wires for military, aerospace and other fields

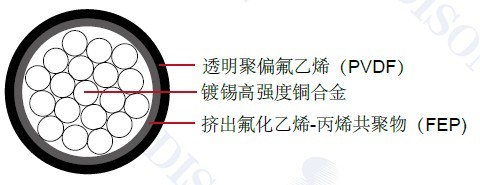

Structure：
Conductor:Tin-plated High Strength Copper Alloy
Insulation:Extruded copolymer of ethylene fluoride and propylene
Sheath:Transparent polyvinylidene fluoride(PVDF)
Insulation thickness:11 mil ( 0.30 mm)
Characteristics：
Rated temperature:135°C
Rated voltage:600 volts
SAE AS22759/15
Color code:MIL-STD-681
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter(Min) |
Conductor diameter(Max) |
WIRE diameter(Min) |
WIRE diameter(Max) |
Weight
LBS/MFT |
|
|
|
IN |
MM |
IN |
MM |
IN |
MM |
IN |
MM |
|
|
26 |
19/38 |
0.018 |
0.457 |
0.020 |
0.508 |
0.035 |
0.889 |
0.039 |
0.991 |
1.75 |
|
24 |
19/36 |
0.023 |
0.584 |
0.026 |
0.660 |
0.040 |
1.016 |
0.044 |
1.118 |
2.42 |
|
22 |
19/34 |
0.029 |
0.737 |
0.330 |
8.382 |
0.045 |
1.143 |
0.051 |
1.295 |
3.59 |
|
20 |
19/32 |
0.037 |
0.94 |
0.041 |
1.041 |
0.053 |
1.346 |
0.059 |
1.499 |
5.22 |
