Application and Description：
The single core U.S. military standard MIL-W-22759/18 insulated wire is extruded ETFE is used in military, aerospace and other fields. It has the characteristics of light weight and excellent mechanical toughness. The extruded ETFE insulation also has good radiation resistance and chemical corrosion resistance.
Structure：

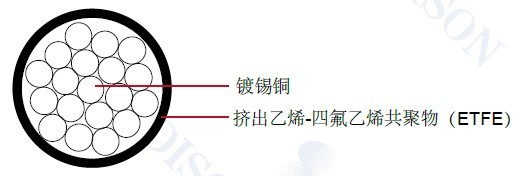

Tin plated copper
Extruded ethylene-tetrafluoroethylene (ETFE) copolymer
Conductor:Tin plated copper
Insulation:Extruded ethylene-tetrafluoroethylene (ETFE) copolymer(ETFE)
Insulation thickness: 6 mil ( 0.15 mm)
Characteristic：
Rated temperature: 150°C
Rated voltage: 600 volts
SAE AS22759/18
Color code: MIL-STD-681
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter(Min) |
Conductor diameter(Max) |
WIRE diameter(Min) |
WIRE diameter (Max) |
Weight
LBS/MFT |
|
|
|
IN |
MM |
IN |
MM |
IN |
MM |
IN |
MM |
|
|
26 |
19/38 |
0.180 |
4.572 |
0.020 |
0.508 |
0.030 |
0.762 |
0.034 |
0.864 |
1.45 |
|
24 |
19/36 |
0.023 |
0.584 |
0.024 |
0.610 |
0.034 |
0.864 |
0.038 |
0.965 |
2.02 |
|
22 |
19/34 |
0.029 |
0.737 |
0.031 |
0.787 |
0.041 |
1.041 |
0.045 |
1.143 |
3.04 |
|
20 |
19/32 |
0.037 |
0.940 |
0.039 |
0.991 |
0.049 |
1.245 |
0.053 |
1.346 |
4.60 |
|
18 |
19/30 |
0.046 |
1.168 |
0.049 |
1.245 |
0.059 |
1.499 |
0.063 |
1.600 |
6.86 |
|
16 |
19/29 |
0.052 |
1.321 |
0.055 |
1.397 |
0.065 |
1.651 |
0.069 |
1.753 |
8.69 |
|
14 |
19/27 |
0.065 |
1.651 |
0.069 |
1.753 |
0.079 |
2.007 |
0.083 |
2.108 |
13.30 |
|
12 |
37/28 |
0.087 |
2.210 |
0.089 |
2.261 |
0.101 |
2.565 |
0.105 |
2.667 |
20.50 |
|
10 |
37/26 |
0.106 |
2.692 |
0.112 |
2.845 |
0.124 |
3.150 |
0.128 |
3.251 |
