Application and Description：
The single core U.S. military standard MIL-W-22759/19 insulated wire is extruded ETFE is used in military, aerospace and other fields. It has the characteristics of light weight and excellent mechanical toughness. The extruded ETFE insulation also has good radiation resistance and chemical corrosion resistance.

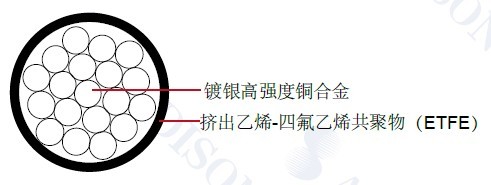

Structure：
Silver-plated High Strength Copper Alloy
Extruded ethylene-tetrafluoroethylene (ETFE) copolymer
Conductor:Silver-plated High Strength Copper Alloy
Insulation:Extruded ethylene-tetrafluoroethylene (ETFE) copolymer
Insulation thickness:6 mil ( 0.15 mm)
Characteristics：
Rated temperature:150°C
Rated voltage:600 volts
SAE AS22759/19
Color code: MIL-STD-681
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter(Min) |
Conductor diameter(Max) |
Wire diameter(Min) |
Wire diameter(Max) |
Weight
LBS/MFT |
|
|
|
IN |
MM |
IN |
MM |
IN |
MM |
IN |
MM |
|
|
26 |
19/38 |
0.018 |
0.445 |
0.020 |
0.518 |
0.030 |
0.762 |
0.034 |
0.864 |
1.4 |
|
24 |
19/36 |
0.023 |
0.572 |
0.024 |
0.620 |
0.034 |
0.864 |
0.038 |
0.965 |
1.9 |
|
22 |
19/34 |
0.029 |
0.724 |
0.031 |
0.798 |
0.041 |
1.041 |
0.045 |
1.143 |
2.9 |
|
20 |
19/32 |
0.037 |
0.927 |
0.040 |
1.003 |
0.049 |
1.245 |
0.053 |
1.346 |
4.6 |
