Application and Description：
Single-core polyvinyl chloride (PVC) insulated MIL-W-16878/3 (Class D) wires are used in electrical and electronic applications, military and aerospace, and internal wiring of electronic equipment. These wires have the characteristics of flame retardant, chemical corrosion resistance, water resistance, oil, acid and solvent resistance.

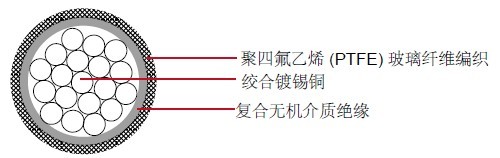

Structure：
Conductor：27% of stranded tinned copper
Insulation：polyvinyl chloride
Sheath：Polytetrafluoroethylene (PTFE) Glass Fiber Braided
Identification：Surface printing MIL-W-25038
Characteristics：
Rated temperature：
-55°C +260°C
Rated voltage：600 volts
Color Code：MIL-STD-104
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter |
WIRE
diameter
（Max） |
WIRE
diameter
（Min） |
Maximum resistance @
20°C OHMS/
MFT |
Weight LBS/MFT |
|
|
|
IN |
MM |
IN |
MM |
IN |
MM |
|
|
|
22 |
19/34 |
0.031 |
0.790 |
0.116 |
2.946 |
0.100 |
2.540 |
23.700 |
10.0 |
|
20 |
19/32 |
0.040 |
1.020 |
0.125 |
3.175 |
0.109 |
2.769 |
14.600 |
12.0 |
|
18 |
19/30 |
0.050 |
1.270 |
0.135 |
3.429 |
0.119 |
3.023 |
9.400 |
15.0 |
|
16 |
19/29 |
0.056 |
1.420 |
0.147 |
3.734 |
0.127 |
3.226 |
6.850 |
19.0 |
|
14 |
19/27 |
0.072 |
1.830 |
0.170 |
4.318 |
0.150 |
3.810 |
4.320 |
25.0 |
|
12 |
19/25 |
0.090 |
2.290 |
0.185 |
4.699 |
0.165 |
4.191 |
2.780 |
35.0 |
|
10 |
49/27 |
0.122 |
3.099 |
0.230 |
5.842 |
0.210 |
5.334 |
1.680 |
55.0 |
|
8 |
133/29 |
0.190 |
4.039 |
0.280 |
7.112 |
0.256 |
6.502 |
0.936 |
85.0 |
|
6 |
133/27 |
0.200 |
5.080 |
0.342 |
8.687 |
0.318 |
8.077 |
0.591 |
127.0 |
|
4 |
133/25 |
0.253 |
6.426 |
0.407 |
10.338 |
0.383 |
9.728 |
0.375 |
192.0 |
|
2 |
665/30 |
0.315 |
8.001 |
0.484 |
12.294 |
0.460 |
11.684 |
0.241 |
291.0 |
|
1 |
817/30 |
0.350 |
8.890 |
0.533 |
13.538 |
0.497 |
12.624 |
0.196 |
347.0 |
|
1/0 |
1035/30 |
0.395 |
10.033 |
0.573 |
14.554 |
0.537 |
13.640 |
0.153 |
415.0 |
|
2/0 |
1330/30 |
0.446 |
11.328 |
0.635 |
16.129 |
0.595 |
15.113 |
0.120 |
520.0 |
|
3/0 |
1672/30 |
0.505 |
12.827 |
0.700 |
17.780 |
0.660 |
16.764 |
0.096 |
648.0 |
|
4/0 |
2109/30 |
0.562 |
14.275 |
0.770 |
19.558 |
0.730 |
18.542 |
0.077 |
793.0 |
