Application and Description：



U.S. military standard special MIL-W-81044 wire is widely used in aviation, aerospace, warships, military vehicles, missiles and other electronic products. This series of double-layer conductors have the characteristics of light weight, low temperature resistance, suitable for high density wiring, excellent straight-through resistance, wear resistance, cold resistance, and common chemical corrosion resistance.

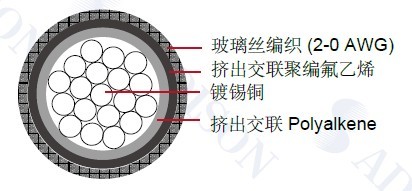

Structure：



Conductor：Tin plated copper



Insulation：Extrusion crosslinking Polyalkene



Sheath：Extruded Crosslinking polyvinylidene fluoride(PVDF)



Insulation thickness：30 mil ( 0.8 mm) ~ 80 mil ( 2.0mm) Excluding knitting above



Characteristic：



Rated temperature：150°C



Rated voltage：600 volts



MIL-W-81044/6



SAE AS81044



10 Basic Colors





Size and weight：

AWG	Conductor stranding	WIRE diameter(Min)		WIRE diameter(Max)		Weight
		IN	MM	IN	MM	LBS/MFT
24	19/36	0.055	1.397	0.059	1.499	3.00
22	19/34	0.066	1.676	0.072	1.829	4.30
20	19/32	0.075	1.905	0.081	2.057	6.10
18	19/30	0.085	2.159	0.091	2.311	8.70
16	19/29	0.093	2.362	0.101	2.565	10.90
14	19/27	0.111	2.819	0.119	3.023	16.20
12	37/28	0.127	3.226	0.135	3.429	24.20
10	37/26	0.156	3.962	0.166	4.216	36.50
8	133/29	0.213	5.410	0.225	5.715	65.00
6	133/27	0.262	6.655	0.276	7.010	103.00
4	133/25	0.317	8.052	0.333	8.458	158.00
2	665/30	0.405	10.287	0.431	10.947	252.00
1	817/30	0.445	11.303	0.475	12.065	305.00
1/0	1045/30	0.491	12.471	0.525	13.335	380.00
