Application and Description：
U.S. military standard special MIL-W-81044 wire is widely used in aviation, aerospace, warships, military vehicles, missiles and other electronic products. This series of double-layer conductors have the characteristics of light weight, low temperature resistance, suitable for high density wiring, excellent straight-through resistance, wear resistance, cold resistance, and common chemical corrosion resistance.

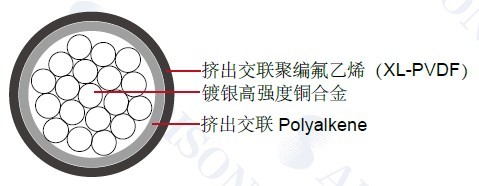

Structure：
Conductor：Silver-plated High Strength Copper Alloy
Insulation：Extrusion crosslinking Polyalkene
Sheath：Extruded Crosslinking polyvinylidene fluoride(XL-PVDF)
Insulation thickness：34 mil ( 0.9 mm) ~ 39 mil ( 1.0mm)
Characteristics：
Rated temperature：150°C
Rated voltage：600 volts
MIL-W-81044/7
SAE AS81044
10 Basic Colors
Size and weight：
|
AWG |
Conductor stranding |
Wire diameter(Min)
|
wire diameter(Max)
|
Weight |
|
|
|
IN |
MM |
IN |
MM |
LBS/MFT |
|
26 |
19/38 |
0.051 |
1.295 |
0.055 |
1.397 |
2.20 |
|
24 |
19/36 |
0.055 |
1.397 |
0.059 |
1.499 |
3.00 |
|
22 |
19/34 |
0.066 |
1.676 |
0.072 |
1.829 |
4.30 |
|
20 |
19/32 |
0.075 |
1.905 |
0.081 |
2.057 |
6.10 |
