Application and Description：
U.S. military standard special MIL-W-81044 wire is widely used in aviation, aerospace, warships, military vehicles, missiles and other electronic products. This series of double-layer conductors have the characteristics of light weight, low temperature resistance, suitable for high density wiring, excellent straight-through resistance, wear resistance, cold resistance, and common chemical corrosion resistance.
Structure：

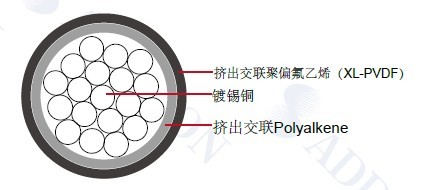

Conductor：Tin plated copper
Insulation：Extrusion crosslinking Polyalkene
Sheath：Extrusion Crosslinking of Polyvinylidene Fluoride(XL-PVDF)
Insulation thickness：30 mil ( 0.8 mm) ~ 85 mil ( 2.2mm)
Characteristics：
Rated temperature：150°C
Rated voltage：600 volts
MIL-W-81044/9
SAE AS81044
10 Basic Colors
Size and weight：
|
AWG |
Conductor stranding |
WIRE diameter(Min)
|
WIRE diameter(Max)
|
Weight |
|
|
|
IN |
MM |
IN |
MM |
LBS/MFT |
|
24 |
19136 |
0.052 |
1.321 |
0.056 |
1.422 |
2.70 |
|
22 |
19/34 |
0.059 |
1.499 |
0.065 |
1.651 |
3.90 |
|
20 |
19/32 |
0.067 |
1.702 |
0.073 |
1.854 |
5.50 |
|
18 |
19/30 |
0.077 |
1.956 |
0.083 |
2.108 |
8.00 |
|
16 |
19/29 |
0.085 |
2.159 |
0.093 |
2.362 |
10.10 |
|
14 |
19/27 |
0.104 |
2.642 |
0.112 |
2.845 |
15.50 |
|
12 |
37/28 |
0.122 |
3.099 |
0.130 |
3.302 |
23.00 |
|
10 |
37/26 |
0.150 |
3.810 |
0.160 |
4.064 |
35.70 |
|
8 |
133/29 |
0.208 |
5.283 |
0.220 |
5.588 |
62.80 |
|
6 |
133/27 |
0.257 |
6.528 |
0.271 |
6.883 |
99.30 |
|
4 |
133/25 |
0.321 |
8.153 |
0.328 |
8.331 |
153.00 |
|
2 |
665/30 |
0.388 |
9.855 |
0.412 |
10.465 |
247.00 |
|
1/0 |
1045/30 |
0.474 |
12.040 |
0.506 |
12.852 |
377.00 |
