Application and Description：
U.S. military standard special MIL-W-81044 wire is widely used in aviation, aerospace, warships, military vehicles, missiles and other electronic products. This series of double-layer conductors have the characteristics of light weight, low temperature resistance, suitable for high density wiring, excellent straight-through resistance, wear resistance, cold resistance, and common chemical corrosion resistance.

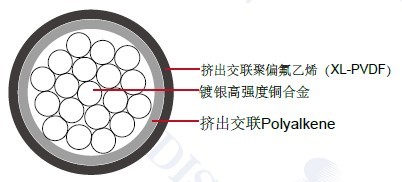

Structure;
Silver-plated High Strength Copper Alloy
Extrusion crosslinking Polyalkene
Extrusion Crosslinking of Polyvinylidene Fluoride(XL-PVDF)
Conductor：Silver-plated High Strength Copper Alloy
Insulation：Extrusion crosslinking Polyalkene
Sheath：Extrusion Crosslinking of Polyvinylidene Fluoride(XL-PVDF)
Insulation thickness：29 mil ( 0.7 mm) ~ 32 mil ( 0.8mm)
Characteristics：
Rated temperature：150°C
Rated voltage：600 volts
MIL-W-81044/10
SAE AS81044
10 Basic Colors
Size and weight：
|
AWG |
Conductor stranding |
wire diameter(Min)
|
wire diameter(Max)
|
Weight
LBS/MFT |
|
|
|
IN |
MM |
IN |
MM |
|
|
26 |
19/38 |
0.046 |
1.168 |
0.050 |
1.270 |
1.90 |
|
24 |
19/36 |
0.052 |
1.321 |
0.056 |
1.422 |
2.70 |
|
22 |
19/34 |
0.059 |
1.499 |
0.065 |
1.651 |
3.90 |
|
20 |
19/32 |
0.067 |
1.702 |
0.073 |
1.854 |
5.50 |
