Application and Description：
U.S. military standard special MIL-W-81044 wire is widely used in aviation, aerospace, warships, military vehicles, missiles and other electronic products. This series of double-layer conductors have the characteristics of light weight, low temperature resistance, suitable for high density wiring, excellent straight-through resistance, wear resistance, cold resistance, and common chemical corrosion resistance.

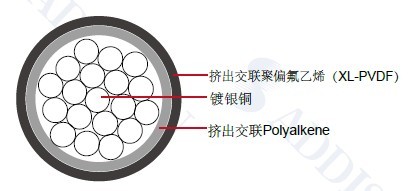

Structure：
Conductor：Silver plated copper
Insulation：Extrusion crosslinking Polyalkene
Sheath：Extrusion Crosslinking of Polyvinylidene Fluoride (XL-PVDF)
Thickness of Insulation Material：15 mil ( 0.4 mm) ~ 19 mil ( 0.5mm)
Characteristics：
Rated temperature：150°C
Rated voltage：600 volts
MIL-W-81044/11
SAE AS81044
10 Basic Colors
Size and weight：
|
AWG |
Conductor stranding |
WIRE diameter(Min)
|
WIRE diameter(Max)
|
Weight
LBS/MFT |
|
|
|
IN |
MM |
IN |
MM |
|
|
30 |
7/38 |
0.025 |
0.635 |
0.029 |
0.737 |
0.71 |
|
28 |
7/36 |
0.028 |
0.711 |
0.032 |
0.813 |
0.91 |
|
26 |
19/38 |
0.032 |
0.813 |
0.036 |
0.914 |
1.30 |
|
24 |
19/36 |
0.038 |
0.965 |
0.042 |
1.067 |
2.00 |
|
22 |
19/34 |
0.045 |
1.143 |
0.049 |
1.245 |
2.90 |
|
20 |
19/32 |
0.053 |
1.346 |
0.057 |
1.448 |
4.40 |
|
18 |
19/30 |
0.063 |
1.600 |
0.067 |
1.702 |
6.80 |
|
16 |
19/29 |
0.069 |
1.753 |
0.075 |
1.905 |
8.50 |
|
14 |
29/27 |
0.085 |
2.159 |
0.093 |
2.362 |
13.40 |
|
12 |
37/28 |
0.104 |
2.642 |
0.112 |
2.845 |
20.70 |
