Application and Description：
Single-core extruded polyvinylidene fluoride (PTFE) insulated MIL-W-81822/3 wire is used for electronic equipment and computer backplane,This kind of insulation has the advantages of light weight and strong toughness.
Structure：

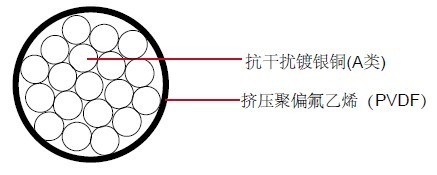

Conductor: Class A: Anti-interference silver-plated copper
Class B: Silver-plated oxygen-free copper
Class C: Silver plated copper alloy alloy (135)
Insulation：Extrusion Crosslinking of Polyvinylidene Fluoride(PVDF)
Characteristics：
Rated temperature：135ºC
Rated voltage：300 volts
Color Code：
MIIL-STD-104
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter |
Wire diameter |
Maximum resistance @ 20°C |
Weight |
|
|
|
IN |
MM |
IN |
MM |
OHMS/ MFT |
LBS/MFT |
|
18 |
Solid |
0.040 |
1.016 |
0.0510 |
1.295 |
6.59 |
6.2 |
|
20 |
Solid |
0.032 |
0.813 |
0.0440 |
1.118 |
10.40 |
4.1 |
|
22 |
Solid |
0.0253 |
0.643 |
0.0390 |
0.991 |
16.80 |
2.5 |
|
24 |
Solid |
0.0201 |
0.511 |
0.0340 |
0.864 |
26.50 |
1.7 |
|
26 |
Solid |
0.0159 |
0.404 |
0.0295 |
0.749 |
42.70 |
1.5 |
|
28 |
Solid |
0.0126 |
0.320 |
0.0265 |
0.673 |
68.00 |
0.8 |
|
30 |
Solid |
0.0100 |
0.254 |
0.0195 |
0.495 |
108.00 |
0.5 |
|
18 |
Solid |
0.0400 |
1.016 |
0.0540 |
1.372 |
6.59 |
4.7 |
|
20 |
Solid |
0.0320 |
0.813 |
0.0460 |
1.168 |
10.40 |
3.6 |
|
22 |
Solid |
0.0253 |
0.643 |
0.0390 |
0.991 |
16.80 |
2.5 |
|
24 |
Solid |
0.0201 |
0.511 |
0.0340 |
0.864 |
26.50 |
1.9 |
|
26 |
Solid |
0.0159 |
0.404 |
0.0295 |
0.749 |
42.70 |
1.2 |
|
28 |
Solid |
0.0126 |
0.320 |
0.0265 |
0.673 |
68.00 |
0.8 |
|
30 |
Solid |
0.0100 |
0.254 |
0.0195 |
0.495 |
108 .00 |
0.5 |
|
18 |
Solid |
0.040 |
1.016 |
0.051 |
1.295 |
7.74 |
6.2 |
|
20 |
Solid |
0.032 |
0.813 |
0.044 |
1.118 |
12.20 |
4.1 |
|
22 |
Solid |
0.0253 |
0.643 |
0.0390 |
0.991 |
19.70 |
2.5 |
|
24 |
Solid |
0.0201 |
0.511 |
0.0340 |
0.864 |
31.00 |
1.7 |
|
26 |
Solid |
0.0159 |
0.404 |
0.0295 |
0.749 |
50.40 |
1.2 |
|
28 |
Solid |
0.0126 |
0.320 |
0.0265 |
0.673 |
79.40 |
0.8 |
|
30 |
Solid |
0.0100 |
0.254 |
0.0195 |
0.495 |
126.00 |
0.5
|
