Application and Description：
Single-core extruded polyvinylidene fluoride (PTFE) insulated MIL-W-81822/4 wire is used for electronic equipment and computer backplane. This kind of wire has good straightness and wears resistance. Solid conductor can be used in the coil of computer backplane.

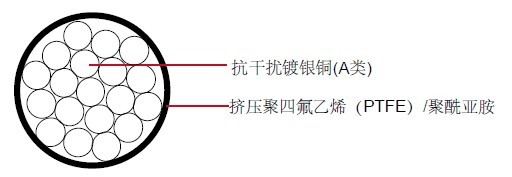

Structure：
Anti-interference silver-plated copper(Class A)
extruded polytetrafluoroethylene (PTFE)/polyimide
Conductor：
Class A: Anti-interference silver-plated copper
Class B: Silver-plated oxygen-free copper
Class C: Silver-plated High Strength Copper Alloy
Insulation：extruded polytetrafluoroethylene (PTFE)/polyimide
Characteristics：
Rated temperature：200ºC
Rated voltage：300 volts
MIL-W-81822/4 Winding– Polytetrafluoroethylene(PTFE)/polyimide
SAE AS81822/4
Color Code: MIIL-STD-104
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter |
Insulation diameter(Min) |
Insulation diameter(Max) |
Maximum resistance @ 20°C |
Weight |
|
|
|
IN |
MM |
IN |
MM |
IN |
MM |
OHMS/ MFT |
LBS/MFT |
|
Type A |
|
20 |
Solid |
0.0320 |
0.813 |
0.044 |
1.120 |
0.048 |
1.220 |
10.40 |
4.2 |
|
22 |
Solid |
0.0253 |
0.643 |
0.037 |
0.940 |
0.041 |
1.040 |
16.80 |
2.8 |
|
24 |
Solid |
0.0201 |
0.511 |
0.0325 |
0.826 |
0.0355 |
0.902 |
26.50 |
1.9 |
|
26 |
Solid |
0.0159 |
0.404 |
0.028 |
0.711 |
0.031 |
0.787 |
42.70 |
1.3 |
|
28 |
Solid |
0.0126 |
0.320 |
0.025 |
0.635 |
0.028 |
0.711 |
68.00 |
1.0 |
|
30 |
Solid |
0.0100 |
0.254 |
0.0185 |
0.47 |
0.0205 |
0.521 |
108.00 |
0.6 |
|
Type B |
|
20 |
Solid |
0.032 |
0.813 |
0.0440 |
1.120 |
0.0480 |
1.220 |
10.40 |
4.2 |
|
22 |
Solid |
0.0253 |
0.643 |
0.0370 |
0.940 |
0.0410 |
1.040 |
16.80 |
2.8 |
|
24 |
Solid |
0.0201 |
0.511 |
0.0325 |
0.826 |
0.0355 |
0.902 |
26.50 |
1.9 |
|
26 |
Solid |
0.0159 |
0.404 |
0.0280 |
0.711 |
0.0310 |
0.787 |
42.70 |
1.3 |
|
28 |
Solid |
0.0126 |
0.320 |
0.0250 |
0.635 |
0.0280 |
0.711 |
68.00 |
1.0 |
|
30 |
Solid |
0.0100 |
0.254 |
0.0185 |
0.470 |
0.020 |
0.521 |
108.00 |
0.6 |
|
Type C |
|
20 |
Solid |
0.0320 |
0.813 |
0.0440 |
1.120 |
0.0480 |
1.220 |
12.20 |
4.2 |
|
22 |
Solid |
0.025 |
0.643 |
0.0370 |
0.940 |
0.0410 |
1.040 |
19.70 |
2.8 |
|
24 |
Solid |
0.0201 |
0.511 |
0.0325 |
0.826 |
0.0355 |
0.902 |
31.00 |
1.9 |
|
26 |
Solid |
0.0159 |
0.404 |
0.0280 |
0.711 |
0.0310 |
0.787 |
50.40 |
1.3 |
|
28 |
Solid |
0.0126 |
0.320 |
0.0250 |
0.635 |
0.0280 |
0.711 |
79.40 |
1.0 |
|
30 |
Solid |
0.0100 |
0.254 |
0.0185 |
0.470 |
0.0205 |
0.521 |
126.00 |
0.6 |
