Application and Description：
Single-core extruded thin-walled polytetrafluoroethylene (PTFE) insulated MIL-W-81822/6 wire is used for computer backplane, and this kind of wire is used for coil of backplane solid.
Structure：

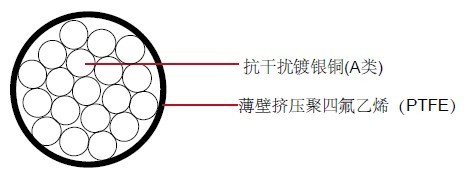

Conductor：
Class A: Anti-interference silver-plated copper
Class B: Silver-plated oxygen-free copper
Class C: Silver-plated High Strength Copper Alloy
Insulation：Thin-walled extruded polytetrafluoroethylene (PTFE)
Characteristics：
Rated temperature：200ºC
Rated voltage：300 volts
SAE AS81822/6
Color Code：MIIL-STD-104
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter |
Insulation diameter
（Min） |
Insulation diameter
（Max） |
Maximum resistance @
20°C OHMS/
MFT |
Weight LBS/MFT |
|
|
|
IN |
MM |
IN |
MM |
IN |
MM |
|
|
|
Type A |
|
20 |
Solid |
0.0320 |
0.813 |
0.0540 |
1.370 |
0.0580 |
1.470 |
10.40 |
5.0 |
|
22 |
Solid |
0.0253 |
0.643 |
0.0460 |
1.170 |
0.050 |
1.270 |
16.80 |
3.4 |
|
24 |
Solid |
0.0201 |
0.511 |
0.0400 |
1.020 |
0.0440 |
1.120 |
26.50 |
2.4 |
|
26 |
Solid |
0.0159 |
0.40 |
0.0290 |
0.737 |
0.0330 |
0.838 |
42.70 |
1.4 |
|
28 |
Solid |
0.0126 |
0.320 |
0.0240 |
0.610 |
0.0280 |
0.711 |
68.00 |
1.0 |
|
30 |
Solid |
0.0100 |
0.254 |
0.0210 |
0.533 |
0.0270 |
0.610 |
108.00 |
0.7 |
|
Type B |
|
20 |
Solid |
0.0320 |
0.813 |
0.0540 |
1.370 |
0.0580 |
1.470 |
10.40 |
5.0 |
|
22 |
Solid |
0.0253 |
0.643 |
0.0460 |
1.170 |
0.0500 |
1.270 |
16.80 |
3.4 |
|
24 |
Solid |
0.0201 |
0.511 |
0.0400 |
1.020 |
0.0440 |
1.120 |
26.50 |
2.4 |
|
26 |
Solid |
0.0159 |
0.404 |
0.0290 |
0.737 |
0.0330 |
0.838 |
42.70 |
1.4 |
|
28 |
Solid |
0.0126 |
0.320 |
0.0240 |
0.610 |
0.0280 |
0.711 |
68.00 |
1.0 |
|
30 |
Solid |
0.0100 |
0.254 |
0.0210 |
0.533 |
0.0240 |
0.610 |
108.00 |
0.7 |
|
Type C |
|
20 |
Solid |
0.0320 |
0.813 |
0.0540 |
1.370 |
0.0580 |
1.470 |
12.20 |
5.0 |
|
22 |
Solid |
0.0253 |
0.643 |
0.0460 |
1.170 |
0.0500 |
1.270 |
19.70 |
3.4 |
|
24 |
Solid |
0.0201 |
0.511 |
0.0400 |
1.020 |
0.0440 |
1.120 |
31.00 |
2.4 |
|
26 |
Solid |
0.0159 |
0.404 |
0.0290 |
0.737 |
0.0330 |
0.838 |
50.40 |
1.4 |
|
28 |
Solid |
0.0126 |
0.320 |
0.0240 |
0.610 |
0.0280 |
0.711 |
79.40 |
1.0 |
|
30 |
Solid |
0.0100 |
0.254 |
0.0210 |
0.533 |
0.0240 |
0.610 |
126.00 |
0.7 |
