Application and Description：
Single-core extruded polytetrafluoroethylene (ETFE) insulated MIL-W-81822/13 wire is used in aerospace and other applications. It has the characteristics of light weight and good mechanical toughness. ETFE insulating material has excellent radiation resistance and chemical corrosion resistance.

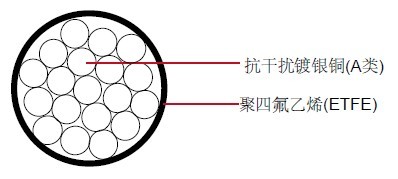

Structure：
Conductor：
Class A: Anti-interference silver-plated copper
Class B: Silver-plated oxygen-free copper
Class C: Silver-plated High Strength Copper Alloy
Insulation：Polytetrafluoroethylene(PTEF)
Characteristic：
Rated temperature：-55°C 到 150°C
Rated voltage：300 volts
SAE AS81822/13
Color Code：MIIL-STD-104
Size and weight：
|
AWG |
Conductor stranding |
Conductor diameter |
Insulation diameter(Min) |
Insulation diameter(Max) |
Maximum resistance @ 20°C |
Weight |
|
|
|
IN |
MM |
IN |
MM |
IN |
MM |
OHMS/ MFT |
LBS/MFT |
|
Type A |
|
20 |
Solid |
0.0320 |
0.813 |
0.0440 |
1.120 |
0.0480 |
1.220 |
10.40 |
4.1 |
|
22 |
Solid |
0.0253 |
0.643 |
0.0370 |
0.940 |
0.0410 |
1.040 |
16.80 |
2.5 |
|
24 |
Solid |
0.0201 |
0.511 |
0.0325 |
0.826 |
0.0355 |
0.902 |
26.50 |
1.7 |
|
24 |
Solid |
0.0201 |
0.511 |
0.0285 |
0.724 |
0.0315 |
0.800 |
26.50 |
1.7 |
|
26 |
Solid |
0.0159 |
0.404 |
0.0280 |
0.711 |
0.031 |
0.787 |
42.70 |
1.1 |
|
26 |
Solid |
0.0159 |
0.404 |
0.0245 |
0.622 |
0.0275 |
0.699 |
42.70 |
1.1 |
|
28 |
Solid |
0.0126 |
0.320 |
0.0250 |
0.635 |
0.0280 |
0.711 |
68.00 |
0.8 |
|
28 |
Solid |
0.0126 |
0.320 |
0.0215 |
0.546 |
0.0245 |
0.622 |
68.00 |
0.8 |
|
30 |
Solid |
0.0100 |
0.254 |
0.0185 |
0.470 |
0.0205 |
0.521 |
108.0 |
0.5 |
|
Type B |
|
20 |
Solid |
0.0320 |
0.813 |
0.0440 |
1.120 |
0.0480 |
1.220 |
10.40 |
3.6 |
|
22 |
Solid |
0.0253 |
0.643 |
0.0370 |
0.940 |
0.0410 |
1.040 |
16.80 |
2.5 |
|
24 |
Solid |
0.0201 |
0.511 |
0.0325 |
0.826 |
0.0355 |
0.902 |
26.50 |
1.7 |
|
24 |
Solid |
0.0201 |
0.511 |
0.028 |
0.724 |
0.0315 |
0.800 |
26.50 |
1.7 |
|
26 |
Solid |
0.0159 |
0.404 |
0.0280 |
0.711 |
0.0310 |
0.787 |
42.70 |
1.1 |
|
26 |
Soli |
0.0159 |
0.404 |
0.0245 |
0.622 |
0.0275 |
0.699 |
42.70 |
1.1 |
|
28 |
Solid |
0.0126 |
0.320 |
0.0250 |
0.635 |
0.0280 |
0.711 |
68.00 |
0.8 |
|
28 |
Solid |
0.0126 |
0.320 |
0.0215 |
0.546 |
0.0245 |
0.622 |
68.00 |
0.8 |
|
30 |
Solid |
0.0100 |
0.254 |
0.0185 |
0.470 |
0.0205 |
0.521 |
108.00 |
0.5 |
|
Type C |
|
20 |
Solid |
0.0320 |
0.813 |
0.0440 |
1.120 |
0.0480 |
1.220 |
12.20 |
4.1 |
|
22 |
Solid |
0.0253 |
0.643 |
0.0370 |
0.940 |
0.0410 |
1.040 |
19.70 |
2.5 |
|
24 |
Solid |
0.0201 |
0.511 |
0.0325 |
0.826 |
0.0355 |
0.902 |
31.00 |
1.7 |
|
24 |
Solid |
0.0201 |
0.511 |
0.0285 |
0.724 |
0.0315 |
0.800 |
31.00 |
1.6 |
|
26 |
Solid |
0.0159 |
0.404 |
0.0280 |
0.711 |
0.0310 |
0.787 |
50.40 |
1.1 |
|
26 |
Solid |
0.0159 |
0.404 |
0.0245 |
0.622 |
0.0275 |
0.699 |
50.40 |
1.1 |
|
28 |
Solid |
0.0126 |
0.320 |
0.0250 |
0.635 |
0.0280 |
0.711 |
76.40 |
0.8 |
|
28 |
Solid |
0.0126 |
0.320 |
0.0215 |
0.546 |
0.0245 |
0.622 |
79.40 |
0.8 |
|
30 |
Solid |
0.0100 |
0.254 |
0.0185 |
0.470 |
0.0205 |
0.521 |
126.00 |
0.5 |
