Application and Description：
Single-core silicone rubber insulated MS27110 (MIL-W-8777) wires are used in aircraft. These wires have low hygroscopicity and chemical resistance.

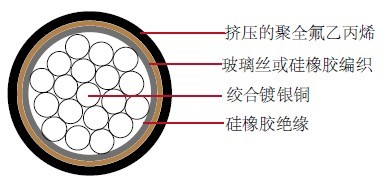

Structure：
Conductor：Twisted silver-plated copper wire
Insulation：Silicone rubber insulated
Weave：Glass fiber or Silicone Rubber Knitting
Sheath：Extruded FEP(FEP)
Characteristics：
Rated temperature：200°C
Rated voltage：600 volts
MS27110
MIL-W-8777
MIL-DTL-8777
Size and weight：
|
AWG |
Conductor stranding |
Sheath thickness |
WIRE diameter
（Max）
|
WIRE diameter
（Min）
|
Maximum resistance @
20°C OHMS/
MFT |
Weight LBS/MFT |
|
|
|
|
IN |
MM |
IN |
MM |
|
|
|
22 |
19/34 |
0.007 |
0.090 |
2.286 |
0.082 |
2.083 |
15.20 |
7.1 |
|
20 |
19/32 |
0.007 |
0.01 |
0.254 |
0.092 |
2.337 |
9.42 |
9.0 |
|
18 |
19/30 |
0.007 |
0.112 |
2.845 |
0.104 |
2.642 |
6.03 |
12.1 |
|
16 |
19/29 |
0.007 |
0.120 |
3.048 |
0.112 |
2.845 |
4.76 |
14.3 |
|
14 |
19/27 |
0.008 |
0.145 |
3.683 |
0.137 |
3.480 |
2.99 |
21.5 |
|
12 |
19/25 |
0.008 |
0.165 |
4.191 |
0.155 |
3.937 |
1.88 |
30.5 |
|
10 |
49/27 |
0.008 |
0.199 |
5.055 |
0.189 |
4.801 |
1.16 |
48.0 |
|
8 |
133/29 |
.0100 |
0.25 |
6.350 |
0.236 |
5.994 |
0.70 |
75.0 |
|
6 |
133/27 |
0.010 |
0.299 |
7.595 |
0.285 |
7.239 |
0.44 |
114.0 |
|
4 |
133/25 |
0.010 |
0.364 |
9.246 |
0.35 |
8.890 |
0.28 |
173.0 |
