Application and Description：
Single-core silicone rubber insulated MS25471 (MIL-W-8777) wires are used in aircraft. These wires have low hygroscopicity and chemical resistance.

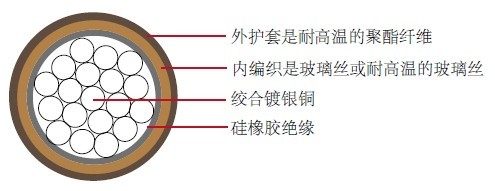

Structure：
Conductor：Twisted silver-plated copper
Insulation：Silicone rubber insulated
Weave：Internal braiding is a combination of glass or high temperature resistant glass and polyester fibers
Sheath：Sheath is a high temperature resistant polyester fiber
Characteristics：
Rated temperature：200°C
Rated voltage：600 volts
MS25471
MIL-W-8777
MIL-DTL-8777
Color Code：Black or white MIL-STD-104; Yellow brown MIL-W-8777
Size and weight：
|
AWG |
Conductor stranding |
WIRE diameter
（Max）
|
WIRE diameter
（Min）
|
Maximum resistance @
20°C OHMS/
MFT |
Weight LBS/MFT |
|
|
|
IN |
MM |
IN |
MM |
|
|
|
22 |
19/34 |
0.090 |
2.286 |
0.080 |
2.032 |
15.20 |
5.8 |
|
20 |
19/32 |
0.100 |
2.540 |
0.090 |
2.286 |
9.42 |
7.8 |
|
18 |
19/30 |
0.115 |
2.921 |
0.105 |
2.667 |
6.03 |
10.8 |
|
16 |
19/29 |
0.130 |
3.302 |
0.120 |
3.048 |
4.76 |
13.5 |
|
14 |
19/27 |
0.136 |
3.454 |
0.150 |
3.810 |
2.99 |
20.0 |
|
12 |
19/25 |
0.170 |
4.318 |
0.156 |
3.962 |
1.88 |
29.0 |
|
10 |
49/27 |
0.200 |
5.080 |
0.186 |
4.724 |
1.16 |
45.0 |
|
8 |
133/29 |
0.255 |
6.477 |
0.241 |
6.121 |
0.70 |
72.0 |
|
6 |
133/27 |
0.310 |
7.874 |
0.296 |
7.518 |
0.44 |
107.0 |
|
4 |
133/25 |
0.370 |
9.398 |
0.500 |
12.700 |
0.28 |
165.0 |
|
2 |
665/30 |
0.435 |
11.049 |
0.415 |
10.541 |
0.18 |
262.0 |
|
1 |
817/30 |
0.470 |
11.938 |
0.450 |
11.430 |
0.15 |
317.0 |
|
1/0 |
1045/30 |
0.550 |
13.970 |
0.520 |
13.208 |
0.15 |
390.0 |
|
2/0 |
1330/30 |
0.600 |
15.240 |
0.570 |
14.478 |
0.09 |
500.0 |
