UL Silica Gel Insulated Wire
UL3529
Model：AWM3529
Execution Standards：UL758-2000
Product characteristics：
1、Rated voltage：600V
2、Working temperature：-60～+150℃
3、Conductor：Solid core or twisted tin-plated copper wire
4、Insulation：Silicon rubber
5、Color：Red/yellow/blue/white/black/green/brown, etc
Characteristics/uses：
It has excellent high temperature and low temperature resistance, excellent chemical stability, high voltage resistance, aging resistance and long service life. It is soft and easy to install.
It is widely used in lighting fixtures, household appliances, electric and thermal appliances, instrumentation, motor wiring and high temperature environment such as electronics, lamps and burners.
Delivery requirement：
According to the agreement of the two parties, short delivery of not less than 10 meters is allowed. The quantity shall not exceed 10% of the total length of delivery.

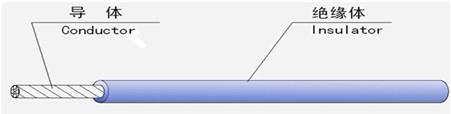

Specification, structure and technical parameters：
|
Wire gauge （AWG） |
Conductor structure |
Insulation thickness |
Outer diameter on the average |
DC Resistance of Conductor at 20 ℃ |
Packaging length |
|
12 |
49 × 0.30 |
0.78 |
4.26 |
5.64 |
305 |
|
14 |
40 × 0.30 |
0.78 |
3.46 |
8.96 |
305 |
|
16 |
7 × 0.50 |
0.78 |
3.06 |
14.6 |
305 |
|
17 |
32 × 0.20 |
0.78 |
2.86 |
18.3 |
305 |
|
18 |
7 × 0.40 |
0.78 |
2.76 |
23.2 |
305 |
|
20 |
7 × 0.32 |
0.78 |
2.52 |
36.7 |
305 |
|
22 |
7 × 0.26 |
0.78 |
2.34 |
59.4 |
610 |
|
24 |
7 × 0.20 |
0.78 |
2.16 |
94.2 |
610 |
|
26 |
7 × 0.16 |
0.78 |
2.04 |
150 |
610 |
|
28 |
7 × 0.12 |
0.78 |
1.92 |
239 |
610 |
|
30 |
7 × 0.10 |
0.78 |
1.86 |
381 |
610 |
