UL Silica Gel Insulated Wire
UL3239
Product model：AWM3239
Execution Standards：UL758-2000
Product characteristics：
1、Rated voltage：3KV、6KV、10KV、20KV、30KV、40KV、50KV
2、Working temperature：-60～+200℃

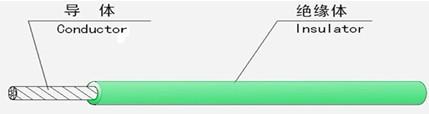

3、Conductor：Twisted tin-plated copper wire
4、Insulation：Silicon rubber
5、Color：Red/yellow/blue/white/black/green/brown, etc
uses
High Voltage Conductors for Electronic Appliances and Other Devices (High Voltage Connections for Television, Microwave ovens, Automobiles, etc.)
Delivery requirement：
According to the agreement of the two parties, short delivery of not less than 10 meters is allowed. The quantity shall not exceed 10% of the total length of delivery.
Specification, structure and technical parameters：
|
Wire gauge （AWG） |
Conductor structure |
Insulation thickness（mm） |
Outer diameter on the average（mm） |
DC Resistance of Conductor at 20 ℃（Ω/km） |
Packaging length |
||||||
|
3KV |
6KV |
10KV |
20KV |
3KV |
6KV |
10KV |
20KV |
||||
|
26 |
7 × 0.16 |
0.55 |
0.85 |
1.0 |
1.3 |
1.58 |
2.18 |
2.48 |
3.08 |
150 |
100 |
|
24 |
7 × 0.20 |
0.55 |
0.85 |
1.0 |
1.3 |
1.71 |
2.31 |
2.61 |
3.21 |
95.8 |
100 |
|
22 |
19 × 0.15 |
0.55 |
0.85 |
1.0 |
1.3 |
1.86 |
2.46 |
2.76 |
3.36 |
59.4 |
100 |
|
20 |
19 × 0.18 |
0.55 |
0.85 |
1.0 |
1.3 |
2.00 |
2.60 |
2.90 |
3.50 |
36.7 |
100 |
|
18 |
19 × 0.23 |
0.55 |
0.85 |
1.0 |
1.3 |
2.25 |
2.85 |
3.15 |
3.75 |
23.2 |
100 |
|
16 |
19 × 0.30 |
0.55 |
0.85 |
1.0 |
1.3 |
2.60 |
3.20 |
3.50 |
4.10 |
14.6 |
100 |
|
14 |
19 × 0.37 |
0.55 |
0.85 |
1.0 |
1.3 |
3.00 |
3.60 |
3.90 |
4.50 |
8.96 |
100 |
|
Wire gauge |
Conductor structure |
Insulation thickness（mm） |
Outer diameter on the average（mm） |
DC Resistance of Conductor at 20 ℃ |
Packaging length（m） |
||||
|
30KV |
40KV |
50KV |
30KV |
40KV |
50KV |
||||
|
26 |
7 × 0.16 |
2.0 |
2.3 |
2.6 |
4.48 |
5.08 |
5.68 |
150 |
100 |
|
24 |
7 × 0.20 |
2.0 |
2.3 |
2.6 |
4.61 |
5.21 |
5.81 |
95.8 |
100 |
|
22 |
19 × 0.15 |
2.0 |
2.3 |
2.6 |
4.76 |
5.36 |
5.96 |
59.4 |
100 |
|
20 |
19 × 0.18 |
2.0 |
2.3 |
2.6 |
4.90 |
5.50 |
6.10 |
36.7 |
100 |
|
18 |
19 × 0.23 |
2.0 |
2.3 |
2.6 |
5.15 |
5.75 |
6.35 |
23.2 |
100 |
|
16 |
19 × 0.30 |
2.0 |
2.3 |
2.6 |
5.50 |
6.10 |
6.70 |
14.6 |
100 |
|
14 |
19 × 0.37 |
2.0 |
2.3 |
2.6 |
5.90 |
6.50 |
7.10 |
8.96 |
100 |
