Product model：GN500-01
Execution Standards：Q/IRMV5－2009
Product characteristics：
1、Rated voltage：300/500V
2、Working temperature：-60～+350℃
3、Conductor：Twisted bare copper wire

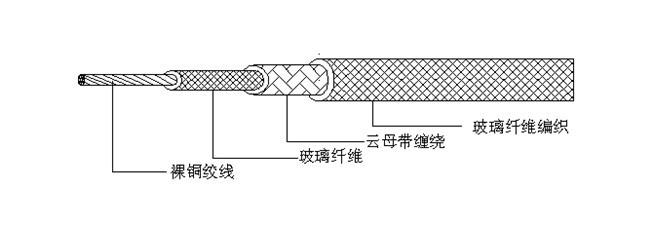

4、Insulation：Glass Fiber Braided + Fluorophlogopite Belt+Glass Fiber Braided
5、Color：white
Characteristics/uses：
Fixed laying, plus flame burning, no harmful and toxic gases. This product is a kind of wire and wire used in various electrical devices which need fire protection performance in metallurgical, thermal, petroleum, chemical, natural gas, kerosene and other special environments.
Delivery requirement：
According to the agreement of the two parties, short delivery of not less than 10 meters is allowed. The quantity shall not exceed 10% of the total length of delivery.
Specification, structure and technical parameters：
Nominal cross-section area
（mm2） |
Conductor structure
Number/Wire Diameter（mm）
|
Insulation thickness
（mm）
|
Outside diameter controlled
（mm）
|
DC Resistance of Conductor at 20 ℃
（Ω/km）
|
Packaging length
（m）
|
|
0.5
|
7 × 0.30
|
0.5
|
2.3 ± 0.3
|
40.8
|
200
|
|
0.75
|
11 × 0.30
|
0.5
|
2.5 ± 0.3
|
24.3
|
200
|
|
1
|
14 × 0.30
|
0.5
|
2.6 ± 0.3
|
20.0
|
200
|
|
1.5
|
21 × 0.30
|
0.5
|
2.9 ± 0.3
|
12.6
|
100
|
|
2
|
28 × 0.30
|
0.6
|
3.3 ± 0.5
|
9.84
|
100
|
|
2.5
|
35 × 0.30
|
0.6
|
3.6 ± 0.5
|
7.37
|
100
|
|
4
|
56 × 0.30
|
0.8
|
4.7 ± 0.5
|
4.83
|
100
|
|
6
|
84 × 0.30
|
0.8
|
5.5 ± 0.5
|
3.26
|
100
|
|
10
|
84 × 0.40
|
0.8
|
6.6 ± 0.5
|
1.80
|
100
|
|
16
|
228 × 0.30
|
0.8
|
7.8 ± 0.5
|
1.31
|
100
|
|
126 × 0.40
|
0.8
|
7.8 ± 0.5
|
1.31
|
100
|
|
25
|
196 × 0.40
|
0.8
|
9.5 ± 0.5
|
0.758
|
100
|
|
361 × 0.30
|
0.8
|
9.5 ± 0.5
|
0.758
|
100
|
|
35
|
494 × 0.30
|
1.0
|
11.2 ± 1.0
|
0.548
|
100
|
|
50
|
396 × 0.40
|
1.2
|
13.2 ± 1.0
|
0.384
|
100
|
|
703 × 0.30
|
1.2
|
13.2 ± 1.0
|
0.384
|
100
|
|
70
|
551 × 0.40
|
1.2
|
15.4 ± 1.0
|
0.289
|
100
|
|
988 × 0.30
|
1.2
|
15.4 ± 1.0
|
0.289
|
100
|
|
95
|
760 × 0.40
|
1.2
|
17.4 ± 1.0
|
0.205
|
100
|
|
Note: According to the technical agreement between the two parties, products of other specifications can be produced.
|
