Product model：GN500-03
Execution Standards：Q/IRMV5－2009
Product characteristics：
1、Rated voltage：300/500V
2、Working temperature：-60～+500℃

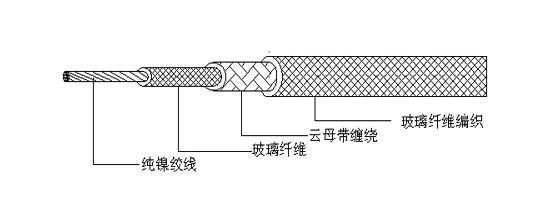

3、Conductor：Twisted pure nickel wire
4、Insulation：Glass Fiber Braided + Fluorophlogopite Belt
5、Color：White
Characteristics/uses：
Fixed laying, plus flame burning, no harmful and toxic gases. This product is a kind of wire and wire used in various electrical devices which need fire protection performance in metallurgical, thermal, petroleum, chemical, natural gas, kerosene and other special environments.
Delivery requirement：
According to the agreement of the two parties, short delivery of not less than 10 meters is allowed. The quantity shall not exceed 10% of the total length of delivery.
Nominal cross-section area
（mm2） |
Conductor structure
Number/Wire Diameter（mm）
|
Insulation thickness
（mm）
|
Outside diameter controlled
（mm）
|
Packaging length
（m）
|
|
0.5
|
7 × 0.30
|
0.5
|
2.3 ± 0.3
|
200
|
|
0.75
|
11 × 0.30
|
0.5
|
2.5 ± 0.3
|
200
|
|
1
|
14 × 0.30
|
0.5
|
2.6 ± 0.3
|
200
|
|
1.2
|
40 × 0.19
|
0.5
|
2.7 ± 0.3
|
100
|
|
1.5
|
21 × 0.30
|
0.5
|
2.9 ± 0.3
|
100
|
|
2
|
28 × 0.30
|
0.6
|
3.3 ± 0.5
|
100
|
|
2.5
|
35 × 0.30
|
0.6
|
3.6 ± 0.5
|
100
|
|
4
|
56 × 0.30
|
0.8
|
4.7 ± 0.5
|
100
|
|
6
|
84 × 0.30
|
0.8
|
5.5 ± 0.5
|
100
|
|
10
|
84 × 0.40
|
0.8
|
6.6 ± 0.5
|
100
|
|
16
|
228 × 0.30
|
0.8
|
7.8 ± 0.5
|
100
|
|
126 × 0.40
|
0.8
|
7.8 ± 0.5
|
100
|
|
25
|
196 × 0.40
|
0.8
|
9.5 ± 0.5
|
100
|
|
361 × 0.30
|
0.8
|
9.5 ± 0.5
|
100
|
|
35
|
494 × 0.30
|
1.0
|
11.2 ± 1.0
|
100
|
|
50
|
396 × 0.40
|
1.2
|
13.2 ± 1.0
|
100
|
|
703 × 0.30
|
1.2
|
13.2 ± 1.0
|
100
|
|
70
|
551 × 0.40
|
1.2
|
15.4 ± 1.0
|
100
|
|
988 × 0.30
|
1.2
|
15.4 ± 1.0
|
100
|
|
95
|
760 × 0.40
|
1.2
|
17.4 ± 1.0
|
100
|
|
备注：根据供需双方协议，可以生产其他规格的产品。
|
