New Energy Vehicle Wire

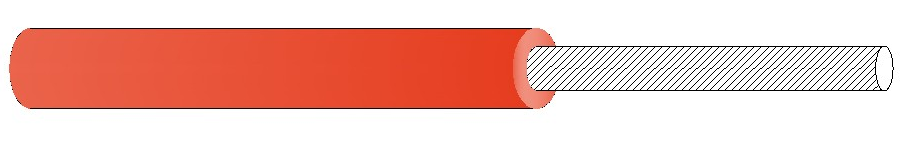

EV New Energy Vehicle High Voltage Wire
Conductor：annealed soft copper wire
Insulation：125℃/150℃ thermosetting elastomer/ 125℃ environmental protection TPE
Wire characteristics
Working temperature:-40℃-125℃/150℃
Rated voltage:1500V,High spark voltage 10KV
Bending radius, easy to install
Single flame retardant wire meets VW-1
Insulation material meets UL94-V0
Halogen-free, environmentally friendly wire
Reference standard(ISO6722;GB/T25085;GB/T2591;QC/T 1037)
Detailed dimensions are subject to product specifications
Insulation material meets UL94-V0
Insulation：125℃/150℃ thermosetting elastomer/ 125℃ environmental protection TPE
Wire characteristics
Working temperature:-40℃-125℃/150℃
Rated voltage:1500V,High spark voltage 10KV
Bending radius, easy to install
Single flame retardant wire meets VW-1
Insulation material meets UL94-V0
Halogen-free, environmentally friendly wire
Reference standard(ISO6722;GB/T25085;GB/T2591;QC/T 1037)
Detailed dimensions are subject to product specifications
Insulation material meets UL94-V0
| Conductor | Insulation |
Electrical Properties |
||
|
Wire gauge mm2 |
Conductor Construction NO.xфmm |
Diameter mm |
Outer Diameter mm |
Max.Conductor Resistance DC 20℃ Ω/km |
| 0.5 | 16/0.20 | 0.90 | 2.9 | 37.1 |
| 0.75 | 24/0.20 | 1.10 | 3.1 | 24.7 |
| 1.0 | 65/0.15 | 1.30 | 3.7 | 18.5 |
| 1.5 | 49/0.20 | 1.60 | 4.0 | 12.7 |
| 2.0 | 64/0.20 | 1.85 | 4.25 | 9.42 |
| 2.5 | 79/0.20 | 2.10 | 4.5 | 7.6 |
| 3.0 | 98/0.20 | 2.45 | 4.9 | 6.15 |
| 4.0 | 133/0.2 | 2.85 | 5.2 | 4.71 |
| 6 | 190/0.2 | 3.50 | 5.6 | 3.14 |
| 10 | 323/0.20 | 4.50 | 7.8 | 1.82 |
| 16 | 513/0.2 | 5.70 | 8.8 | 1.16 |
| 25 | 879/0.19 | 7.2 | 9.8 | 0.74 |
| 35 | 1228/0.19 | 8.40 | 11.6 | 0.53 |
| 50 | 1755/0.19 | 10.0 | 13.1 | 0.37 |
| 70 | 2479/0.19 | 11.9 | 15.4 | 0.26 |
